EcoPac | 150W Constant Voltage | 24V | IP67 Triac Dimming | LED Driver
ELED-150P-24T
Original price was: £99.72£83.10.£83.70£69.75Current price is: £83.70£69.75. Inc VATEx VAT
Key Features
- 24V
- Up to 150 Watts
- TRIAC Dimmable LED Driver
- IP67
- 3 Year Warranty
*Bulk pricing available – enquiries@striptecuk.com
Availability: 33 in stock
Product Overview
Product Specification
Technical Documents
Product Overview
Product Overview
The ELED-150P-24T LED driver is a high-performance power solution designed for reliable and efficient operation in both indoor and outdoor environments. With a constant voltage design and compatibility with leading and trailing edge TRIAC dimmers, it ensures smooth dimming performance and consistent output.
Key Features
- Constant voltage design
- Works with leading and trailing edge TRIAC dimmers
- PWM output for stable performance
- Protections against short circuit, over loading, and over temperature
- AC input: 200-240VAC
- IP66 design for reliable outdoor installation
- Cooled by free air convection
- High efficiency up to 87%
- 3 years warranty
Product Specification
| ELED-150P-24T Specifications | |
|---|---|
| Wattage | 150 |
| Input Voltage | 200-240VAC |
| Output Current | 6.25A |
| Output Voltage | 24 |
| Output Voltage Options | Single |
| DC Output Adjustment | N/A |

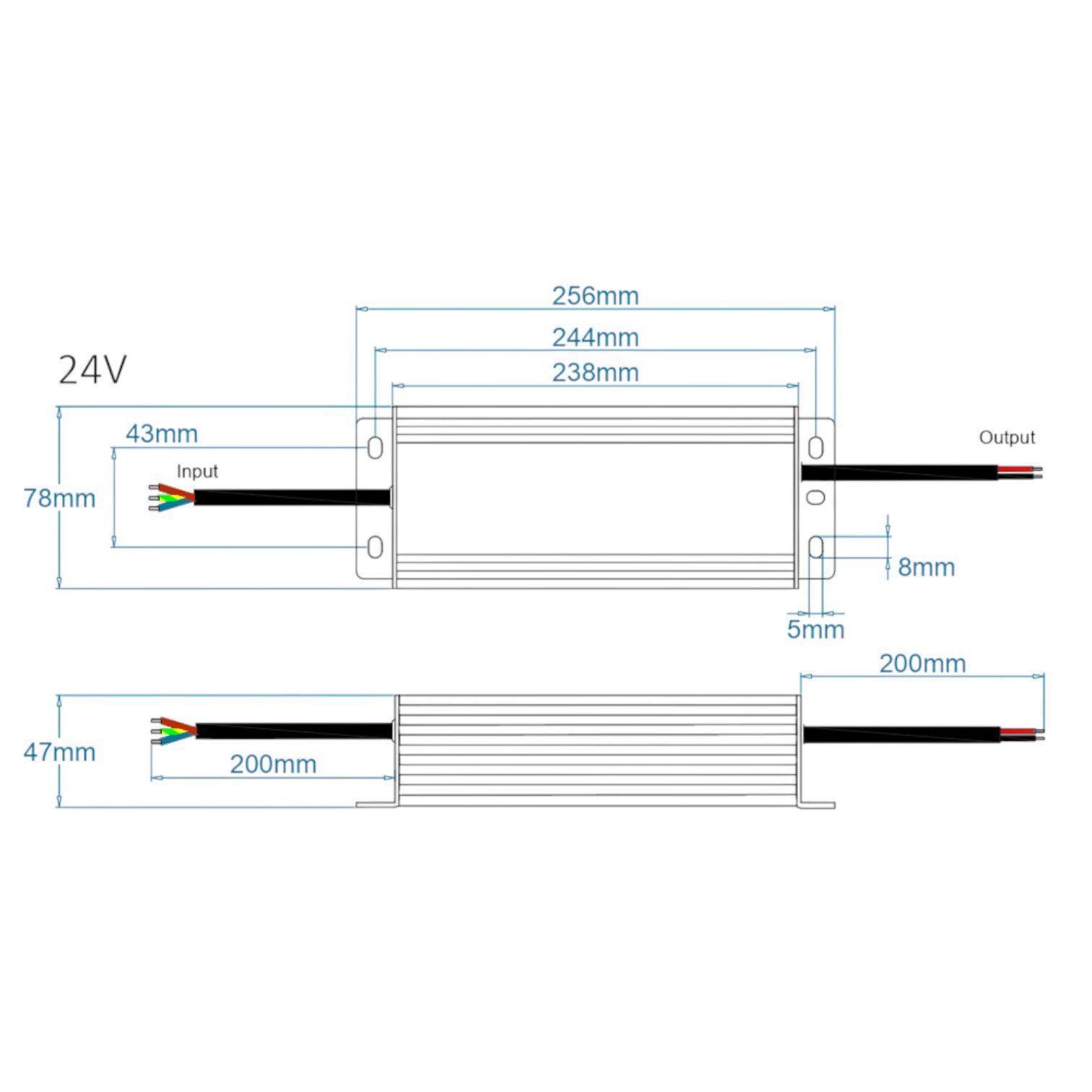

| Dimensions | 256 × 78 × 47 mm |
| Working Temperature | -40℃ ~ +60℃ (Refer to derating curve) |
| Safety Standards | EN61347-1, EN61347-2-13 |
Technical Documents
