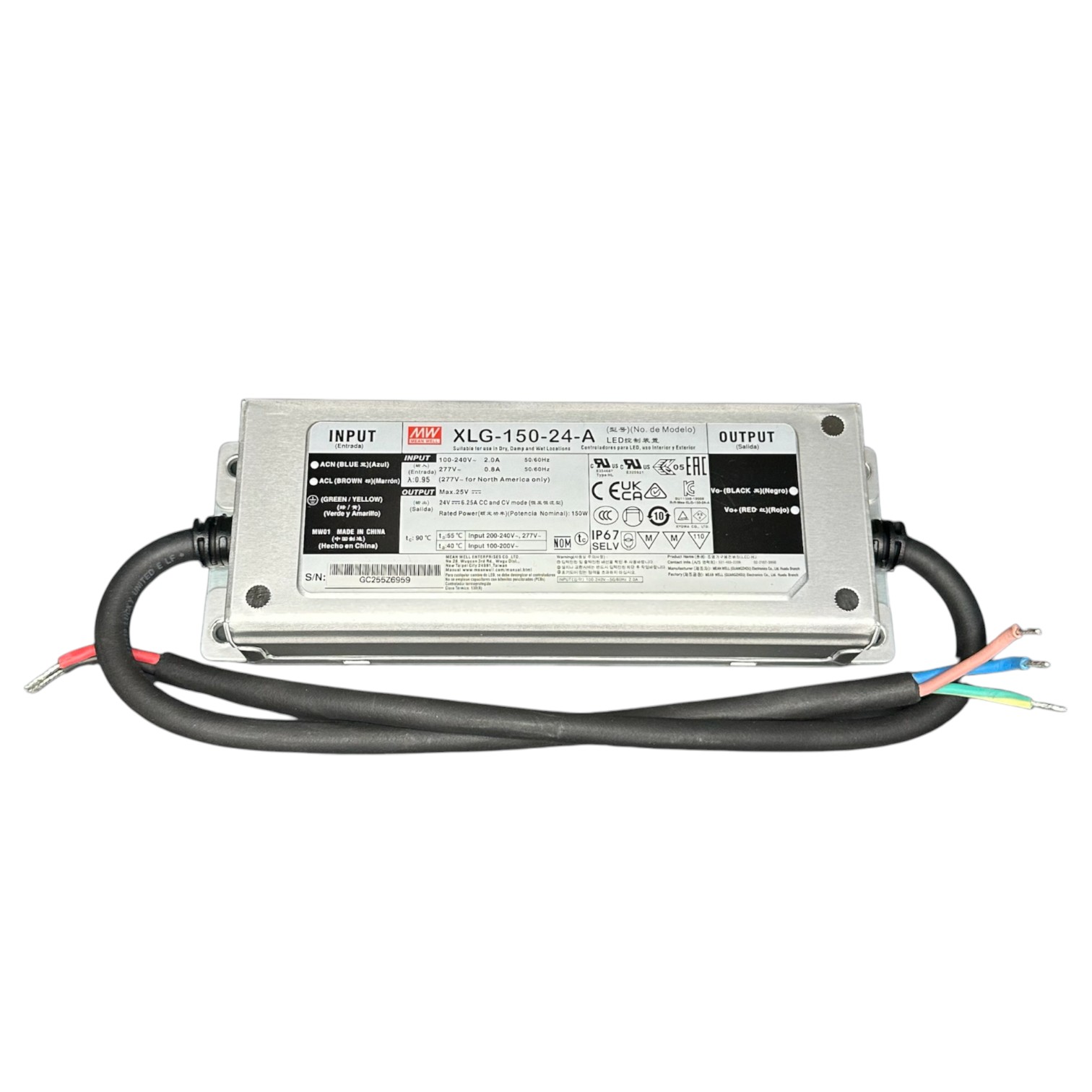

Mean Well XLG Series LED Driver – Technical Specifications

Key Features

• Voltage: 24V Constant Voltage
• Power Output: 150W
• Max Current: 6.25 Amp
• IP Rating: Rated IP67
• Dimmability: Non Dimmable
• Certifications: PFC / UL / CUL / ENEC / CB / CE Approved
• Protection Features: Short Circuit Protection, Over Voltage Protection
• Warranty: 5 Year Warranty

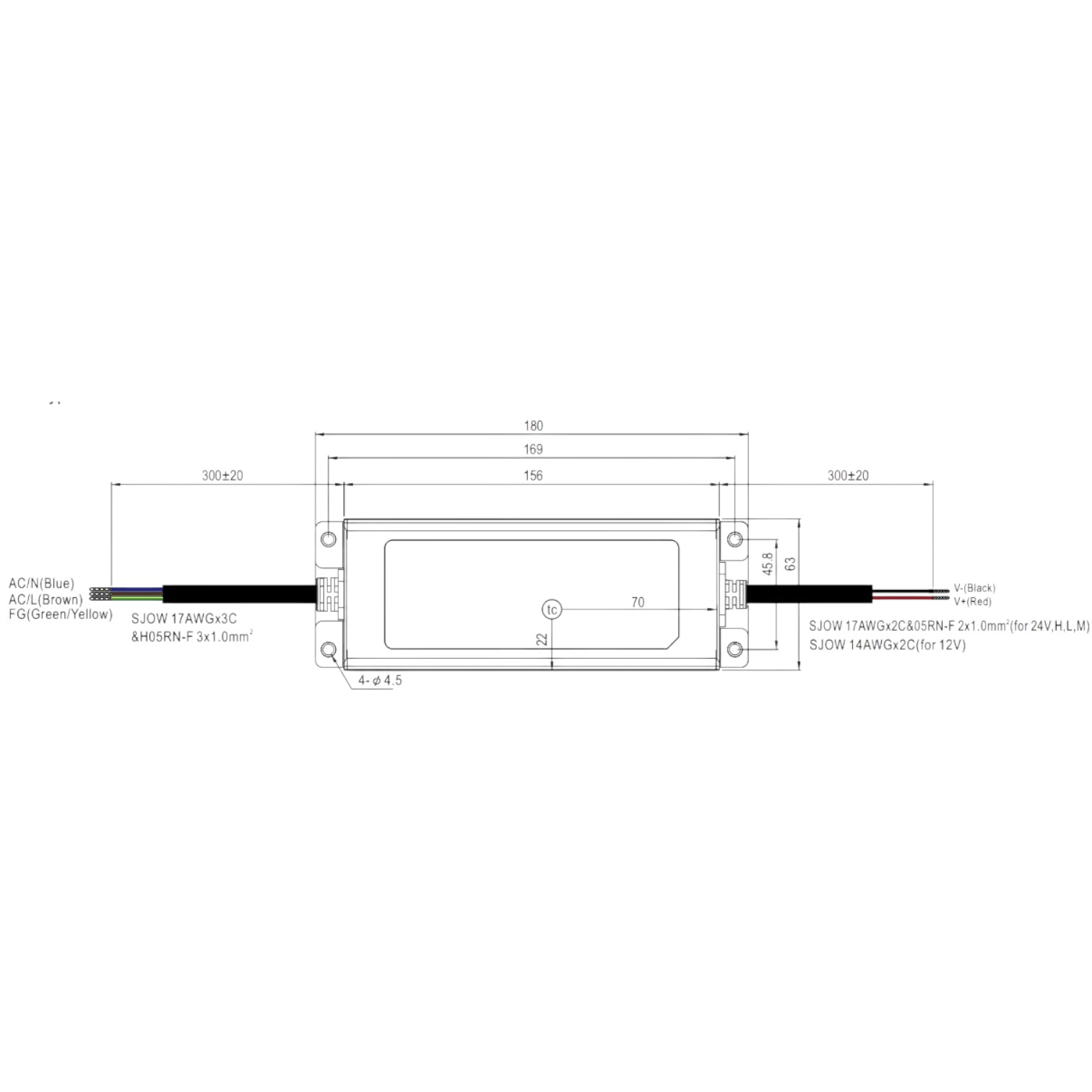

• Dimensions: 180mm x 63mm x 35.5mm (L x W x H)

Product Overview

This premium LED driver is crafted using advanced technology to ensure optimal efficiency and dependable performance, making it perfect for various lighting applications.

The Mean Well XLG Series LED Driver features a versatile input voltage range of 90-305VAC, allowing compatibility with various power sources.

With a maximum power output of 150W, the XLG Series LED Driver delivers reliable performance and efficiency, making it suitable for high-demand lighting applications.

Mean Well LED Driver – Technical Specifications

• Brand: Mean Well
• Output Voltage: 24V
• Output Current: Up to 6.25A
• Rated Power: Up to 150 Watts
• Dimming Mode: Non-Dimmable
• Input Voltage Range: 100 – 305VAC
• Input Frequency: 47/63Hz
• Power Factor: >0.95
• Inrush Current: 50A
• Ingress Protection: IP67
• Overload Protection: Yes
• Short Circuit Protection: Yes
• Over Voltage Protection: Yes
• Electrical Safety Class: I
• Warranty: 5 Years
• Application Environment: Outdoor
• Body Material: Metal
• Ingress Protection (IP): 67
• Input Current Type (A): AC
• Product Weight (g): 800
• Constant Voltage / Constant Current: CV
• Output Current Type: DC
• Over Current Protection: Yes
• Operating Temperature Min. – Max. (°C): -40℃ to 90℃
• Dimensions LxWxH (mm): 180x63x36
