Technical Specifications

• 24V Constant Voltage
• 320W Power Output
• 13 Amp Max
• Rated IP67
• Non Dimmable
• PFC / UL / CUL / ENEC / CB / CE Approved
• Short Circuit Protection
• Over Voltage Protection
• 5 Year Warranty

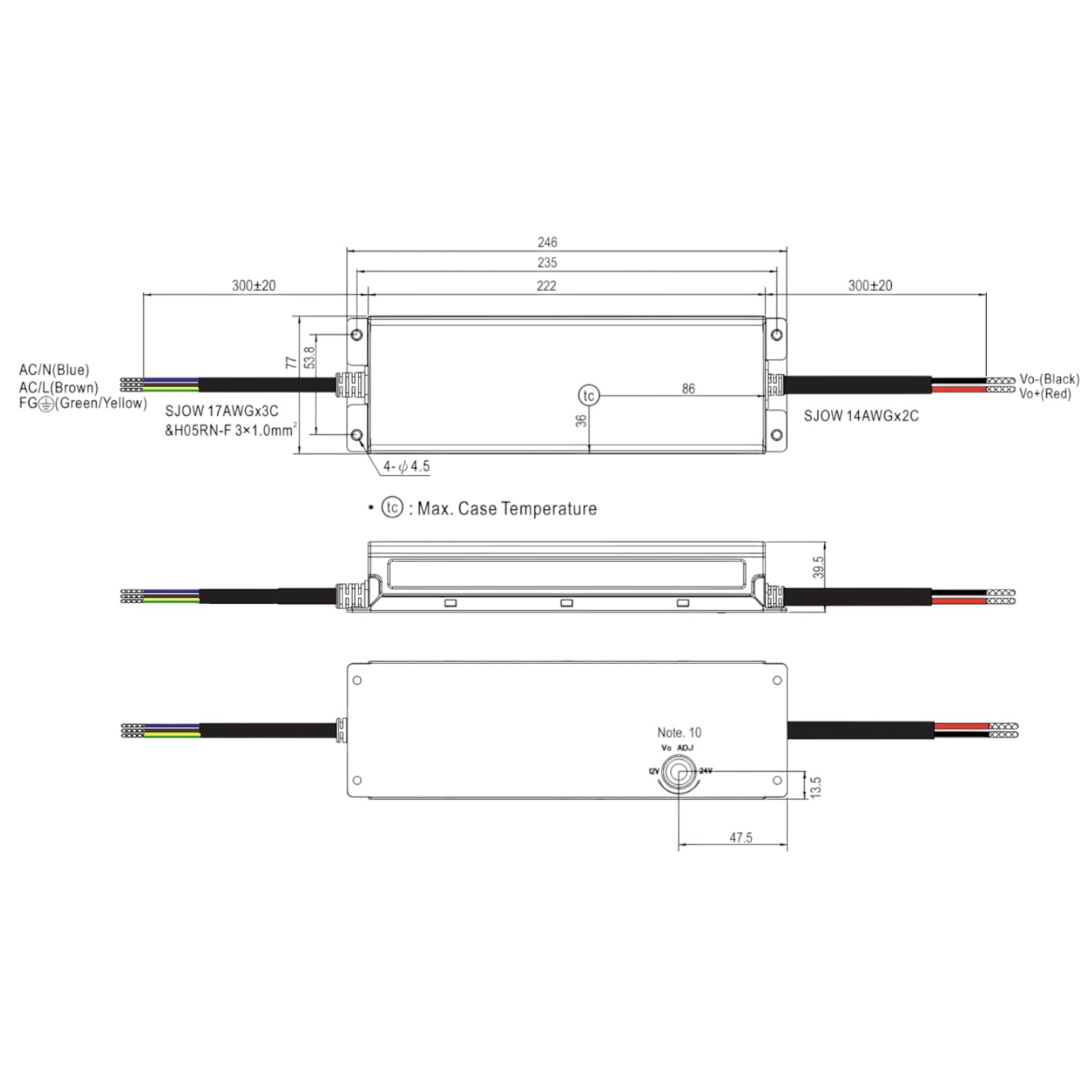

• Dimensions (L x W x H): 246mm x 77mm x 39.5mm

Product Overview

This premium LED driver is crafted using advanced technology to ensure optimal efficiency and dependable performance, making it perfect for various lighting applications.

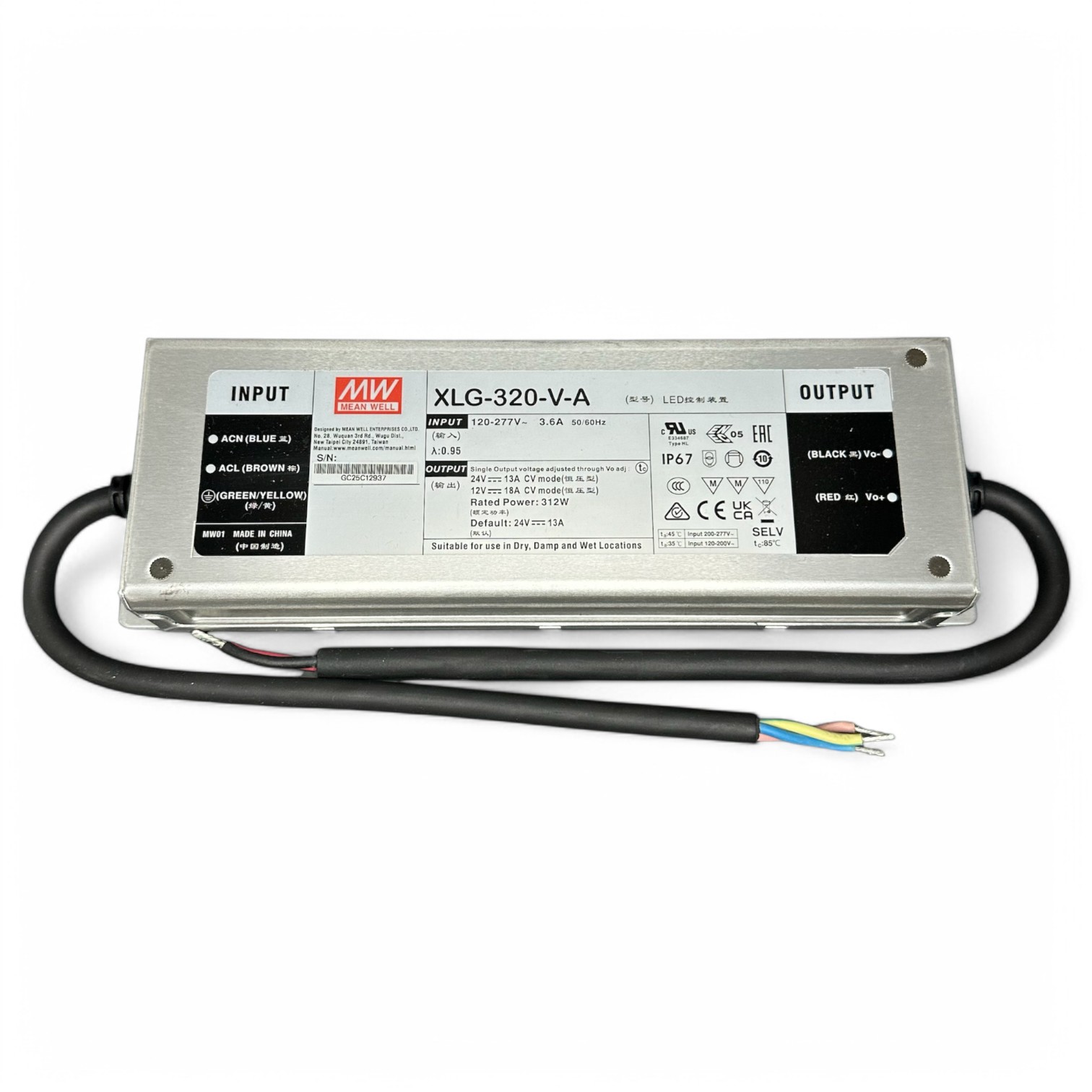

The Mean Well XLG Series LED Driver features a versatile input voltage range of 90-305VAC, allowing compatibility with various power sources.

With a maximum power output of 320W, the XLG Series LED Driver delivers reliable performance and efficiency, making it suitable for high-demand lighting applications.

LED Driver Specifications

• Brand: Mean Well
• Output Voltage: 24V
• Output Current: Up to 13A
• Rated Power: Up to 312 Watts
• Dimming Mode: Non-Dimmable
• Input Voltage Range: 100 – 305VAC
• Input Frequency: 47/63Hz
• Power Factor: >0.93
• Inrush Current: 45A
• Ingress Protection: IP67
• Overload Protection: Yes
• Short Circuit Protection: Yes
• Over Voltage Protection: Yes
• Electrical Safety Class: I
• Warranty: 5 Years
• Application Environment: Outdoor
• Body Material: Metal
• Ingress Protection (IP): 67
• Input Current Type (A): AC
• Product Weight (g): 1450
• Constant Voltage / Constant Current: CV
• Output Current Type: DC
• Over Current Protection: Yes
• Operating Temperature Min. – Max. (°C): -40℃ to 85℃
• Dimensions LxWxH (mm): 246x77x40
