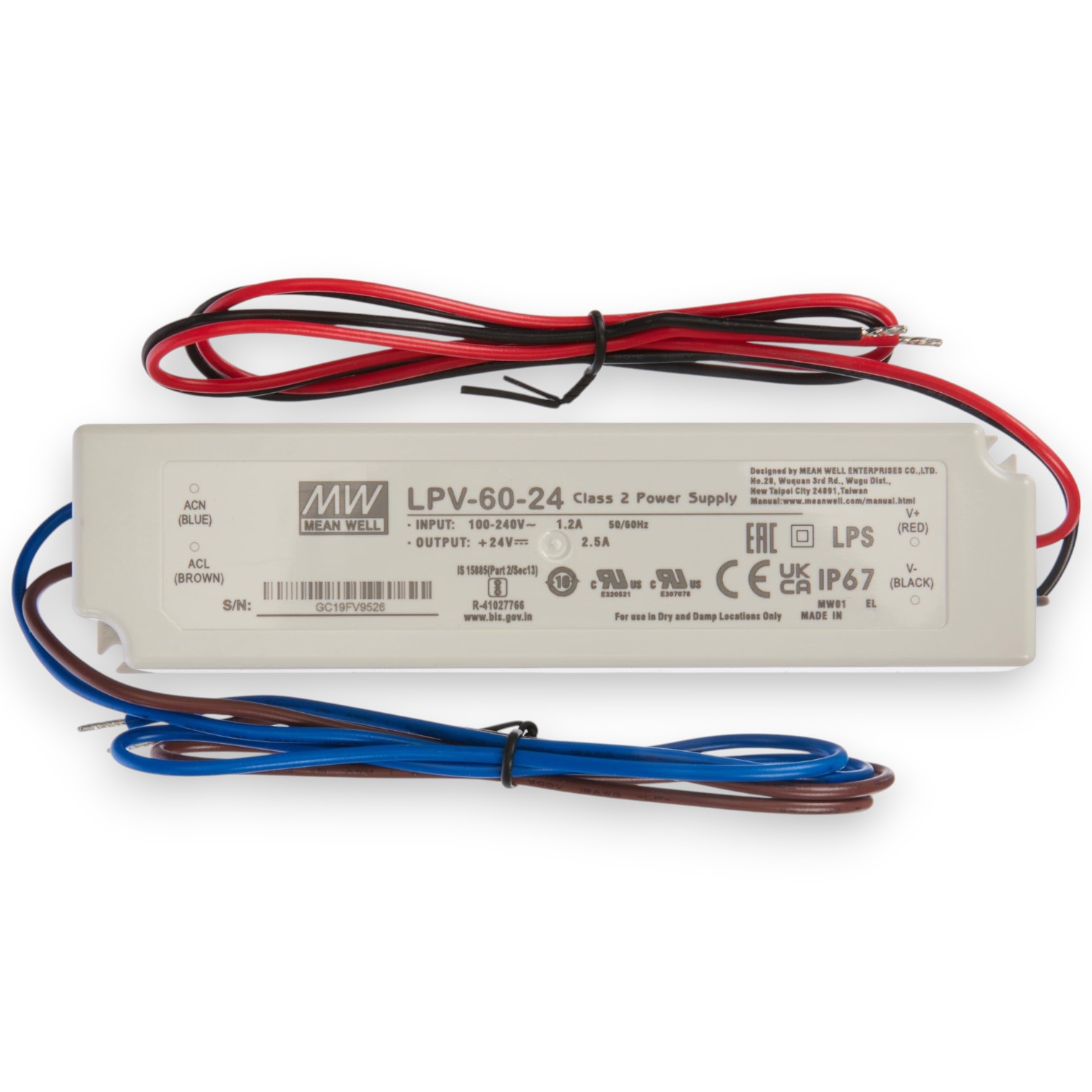

Mean Well LPV Series LED Driver – Technical Specifications

• Voltage: 24V Constant Voltage
• Power Output: 60W
• Max Current: 2.5 Amp
• IP Rating: Rated IP67
• Dimming Mode: Non Dimmable
• Certifications: PFC / UL / CUL / ENEC / CB / CE Approved
• Protection Features: Short Circuit Protection, Over Voltage Protection
• Warranty: 2 Years

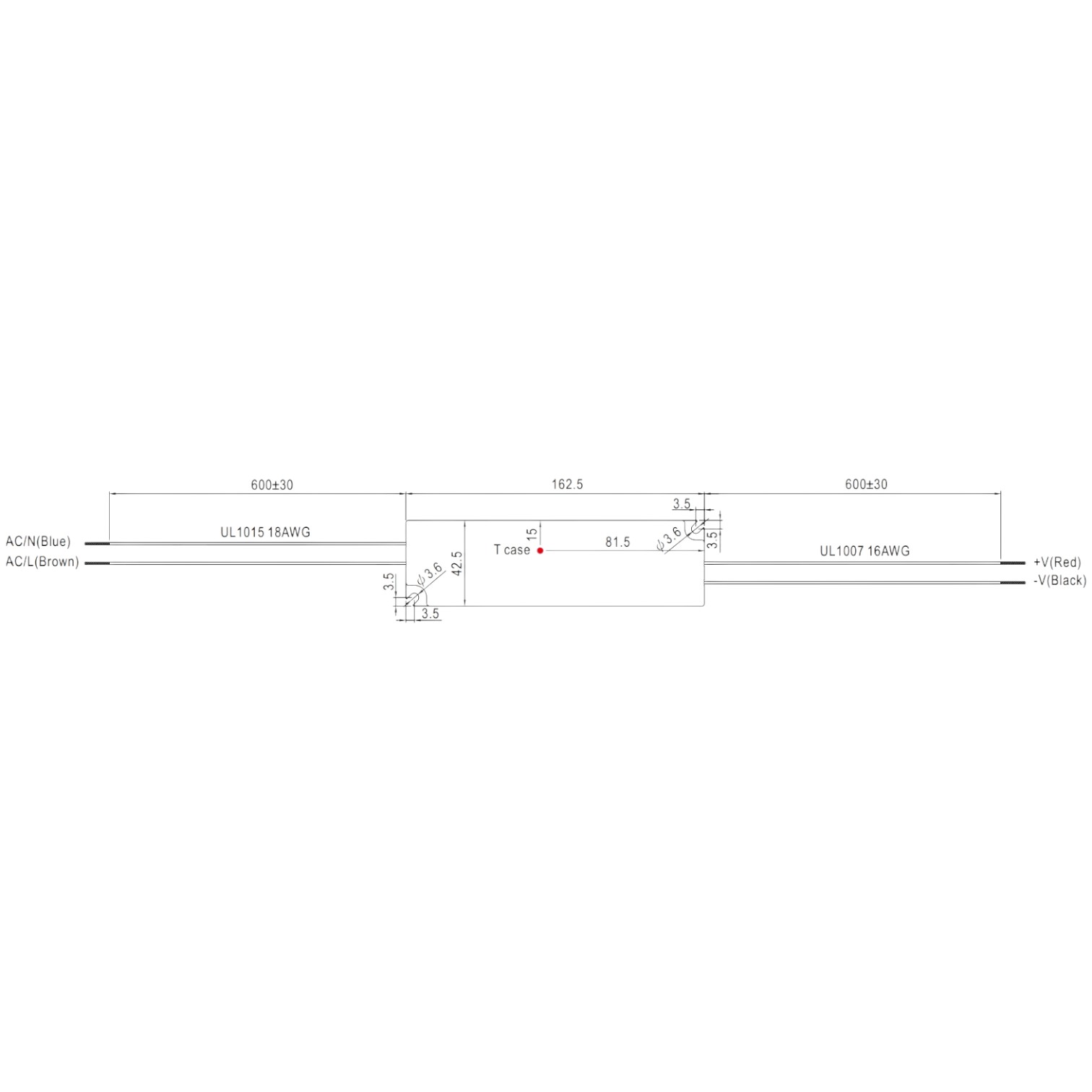

• Dimensions: 162mm x 42mm x 32mm (L x W x H)

Product Overview

Engineered for superior reliability and performance, this LED driver is built to meet the rigorous demands of the lighting industry. Its compact and durable design ensures resilience in tough conditions, making it a versatile choice for both indoor and outdoor lighting applications.

The LPV Series LED Driver supports a broad input voltage range of 90-264VAC, providing compatibility with different electrical systems. With a constant 24V output, it delivers a steady and reliable power supply for various LED installations.

Designed with a 60W power rating, this driver is capable of supporting multiple LED lighting solutions, including high-output LEDs, LED strip lighting, and other LED-based fixtures. Its IP67-rated enclosure offers complete protection against dust and water exposure, making it ideal for damp and wet environments.

Efficiency is a key feature of the LPV Series LED Driver, boasting a high power factor of up to 0.95 to help minimize energy consumption and reduce operational expenses. It is also equipped with essential safety mechanisms, including over-voltage, over-current, and short-circuit protection. Additionally, it complies with EMC standards (EN 55022 Class B) to ensure reliable operation without electrical interference.

In summary, the 24V 60W IP67 LPV Series LED Driver provides a robust, efficient, and safe power solution for LED lighting systems. Its high durability, flexible input voltage range, and advanced protective features make it a trusted choice for long-term performance.

Mean Well LED Driver – Technical Specifications

• Brand: Mean Well
• Output Voltage: 24V
• Output Current: Up to 2.5A
• Rated Power: Up to 60 Watts
• Dimming Mode: Non-Dimmable
• Input Voltage Range: 90 – 264VAC
• Input Frequency: 47/63Hz
• Power Factor: >0.86
• Inrush Current: 60A
• Ingress Protection: IP67
• Overload Protection: Yes
• Short Circuit Protection: Yes
• Over Voltage Protection: Yes
• Electrical Safety Class: I
• Warranty: 2 Years
• Application Environment: Outdoor
• Body Material: Plastic
• Ingress Protection (IP): 67
• Input Current Type (A): AC
• Product Weight (g): 400
• Constant Voltage / Constant Current: CV
• Output Current Type: DC
• Over Current Protection: Yes
• Operating Temperature Min. – Max. (°C): -30℃ to 70℃
• Dimensions LxWxH (mm): 162x42x30
