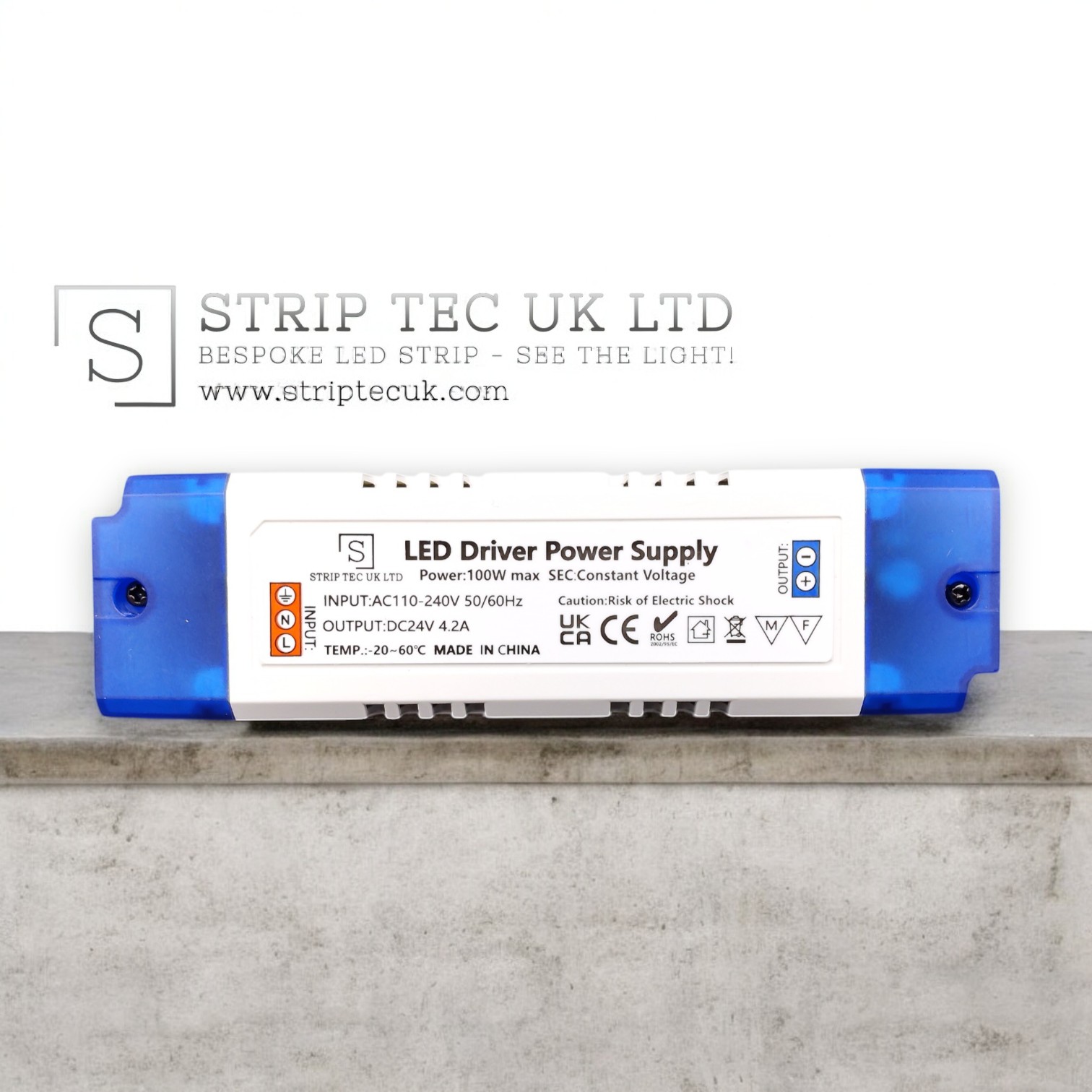

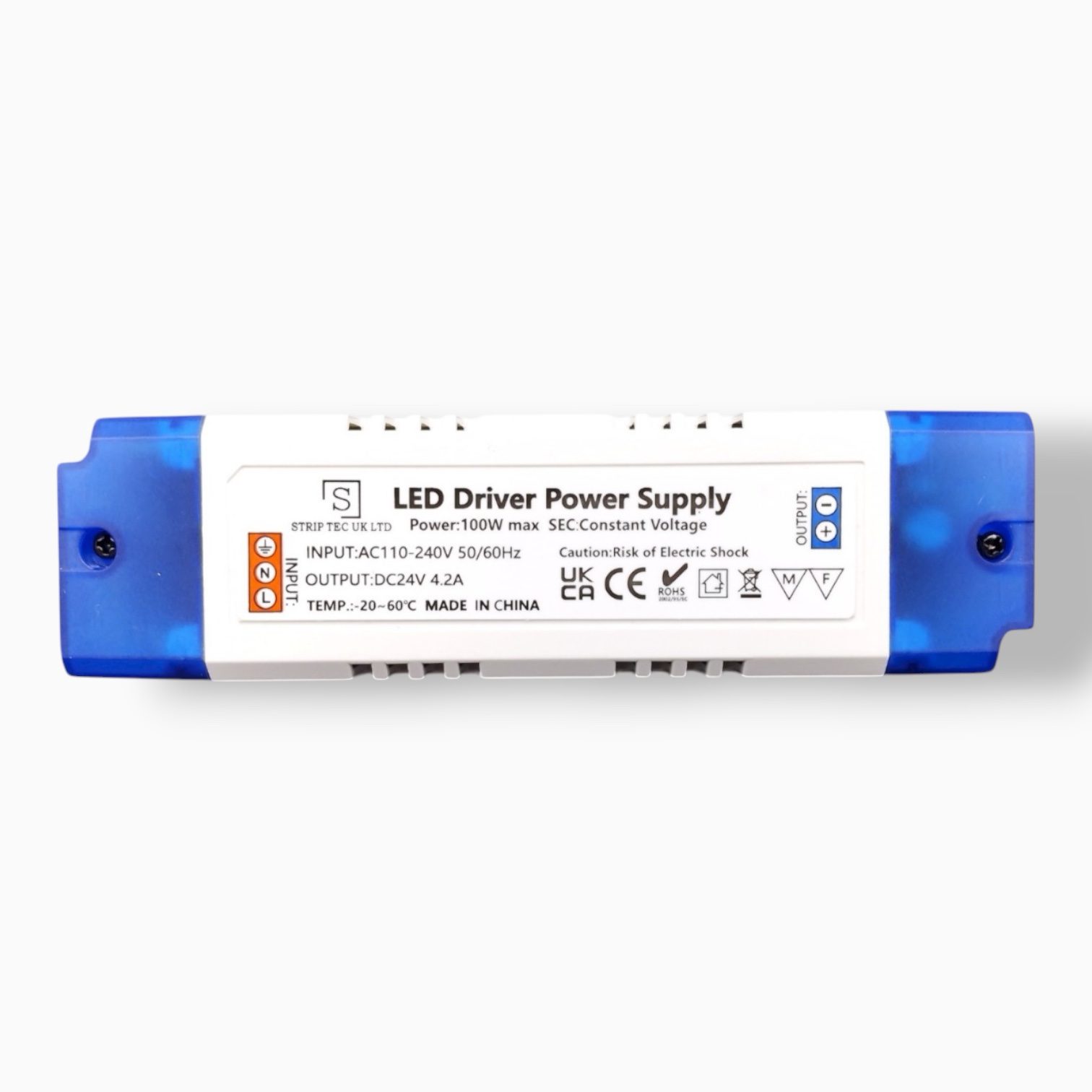

LED Driver – Technical Overview

• Voltage: 24V Constant Voltage
• Power Output: 100W
• Max Current: 4.2 Amp
• IP Rating: Rated IP20
• Dimming Mode: Non-Dimmable
• Certifications: PFC / UL / CUL / ENEC / CB / CE Approved
• Protection Features: Short Circuit Protection, Over Voltage Protection
• Warranty: 2 Years
• Dimensions: 165mm x 46mm x 30mm (L x W x H)

Product Overview

Built with renowned quality and durability, this LED driver is designed to meet the high demands of the lighting industry. Its compact and robust construction makes it an ideal choice for indoor applications.

This driver has an input voltage range of 110-240VAC, making it compatible with various electrical systems. It also has a constant voltage output of 24V, ensuring a stable and consistent power supply for your LEDs.

This driver delivers a power output of up to 100W, providing ample power for LED lighting systems and is suitable for small-sized lighting setups.

It also has built-in over-voltage, over-current, and short-circuit protection and EMC compliance to EN 55022 Class A, ensuring the safety of your lighting system and preventing damage to your LEDs.

Overall, the 24V 100W IP20 Series LED Driver is a reliable and efficient solution for powering your LED lighting systems. With its robust construction and advanced safety features, you can be confident in the quality and performance of your lighting system.

LuxLite LED Driver – Technical Specifications

• Brand: LuxLite
• Output Voltage: 24V
• Output Current: Up to 4.2A
• Rated Power: Up to 100 Watts
• Dimming Mode: Non-Dimmable
• Input Voltage Range: 110 – 240VAC
• Input Frequency: 50/60Hz
• Power Factor: >0.9
• Inrush Current: 30A
• Ingress Protection: IP20
• Overload Protection: Yes
• Short Circuit Protection: Yes
• Over Voltage Protection: Yes
• Electrical Safety Class: I
• Warranty: 2 Years
• Application Environment: Indoor
• Body Material: Plastic
• Ingress Protection (IP): 20
• Input Current Type (A): AC
• Product Weight (g): 250
• Constant Voltage / Constant Current: CV
• Output Current Type: DC
• Over Current Protection: Yes
• Operating Temperature Min. – Max. (°C): -20℃ to 60℃
• Dimensions LxWxH (mm): 165x46x30
