Strip Tec | RGB | IP20 | 24V | 5050 Series | LED Strip Light | 12W p/m | 5 Metres, 10 Meters & 50 Metres

Specifications:

• Voltage: 24V
• Max. Power: 12W/m
• LEDs per metre: 60 LEDs
• Cut Points: Every 100mm
• Beam Angle: 120°
• PCB Weight: 2oz
• Warranty: 3 Years

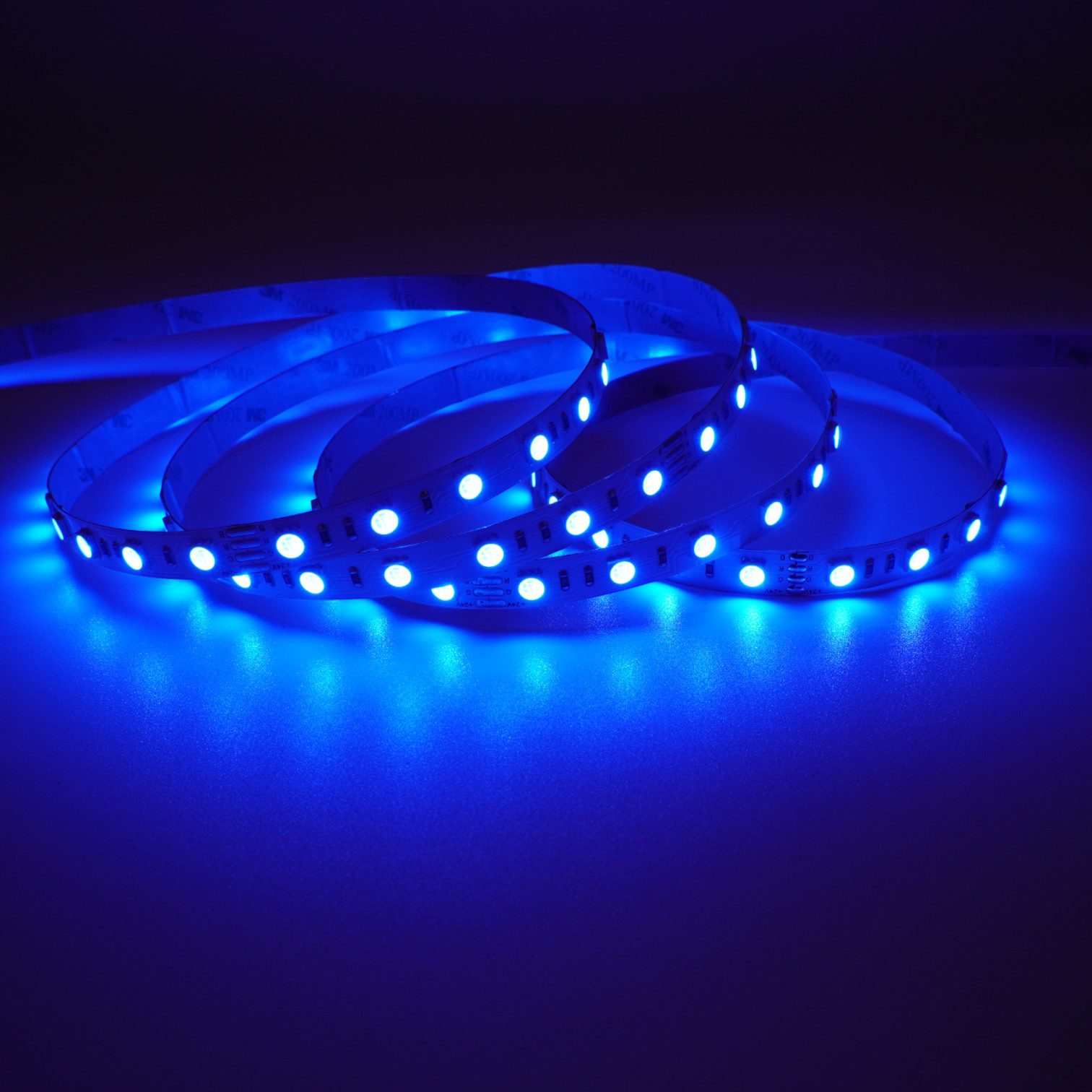

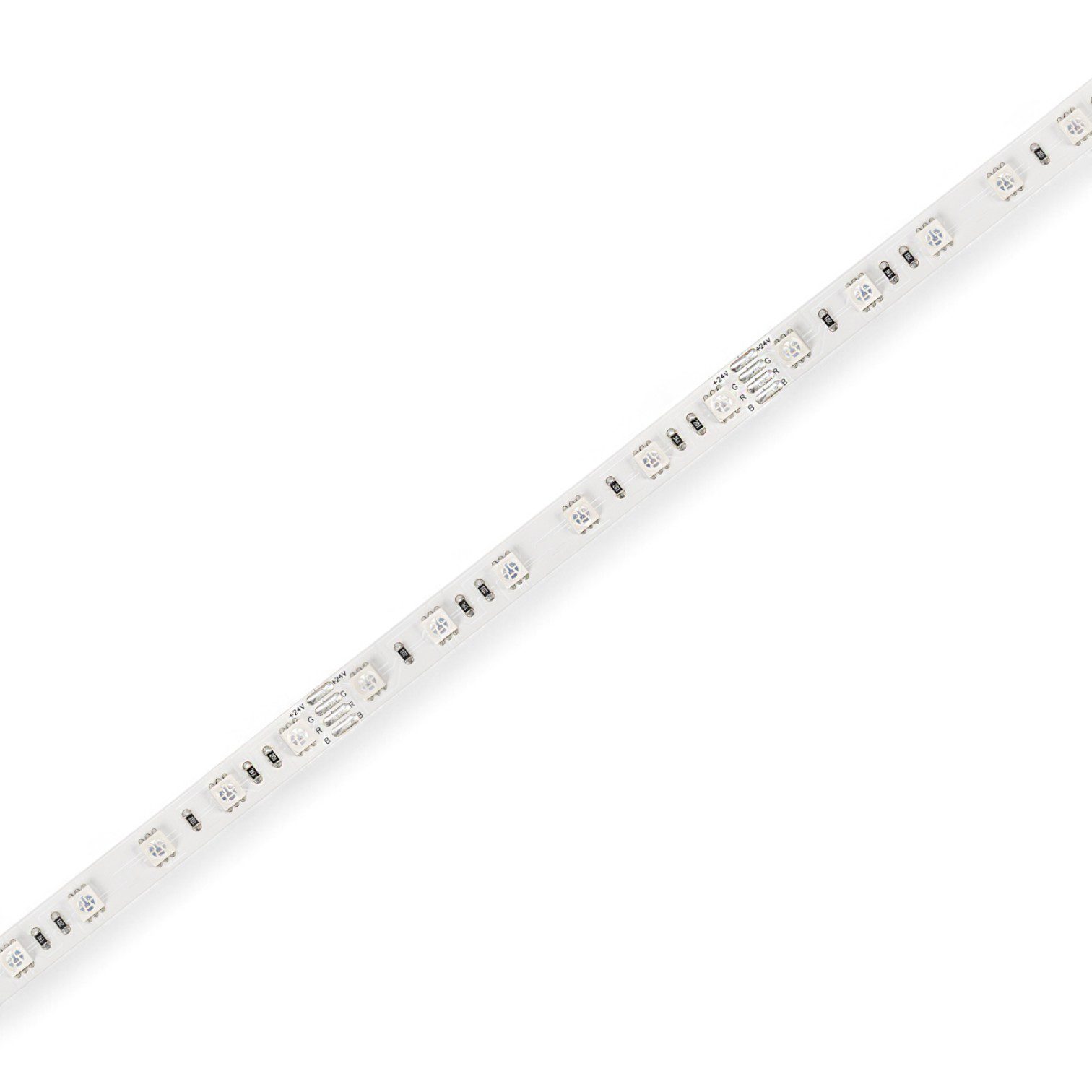

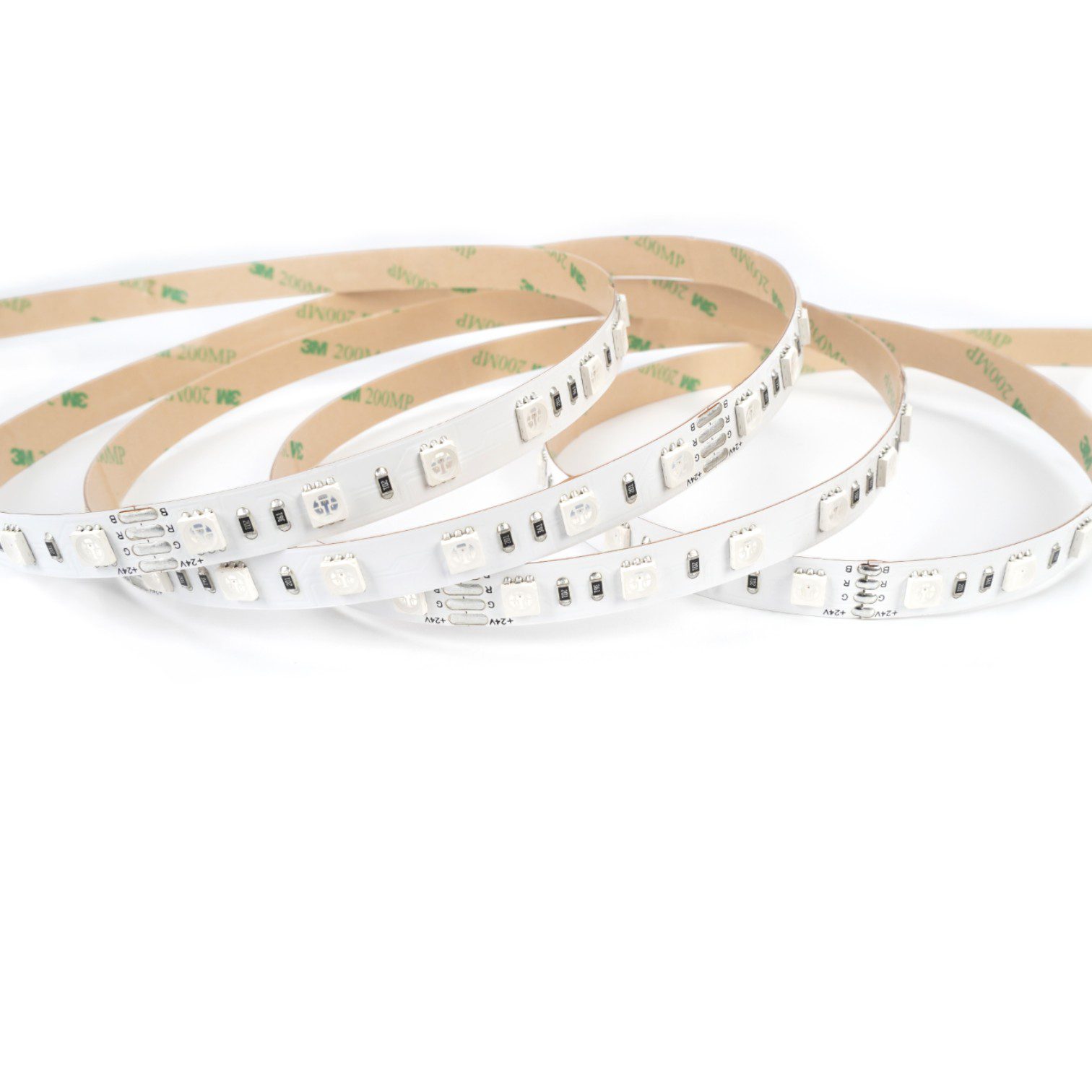

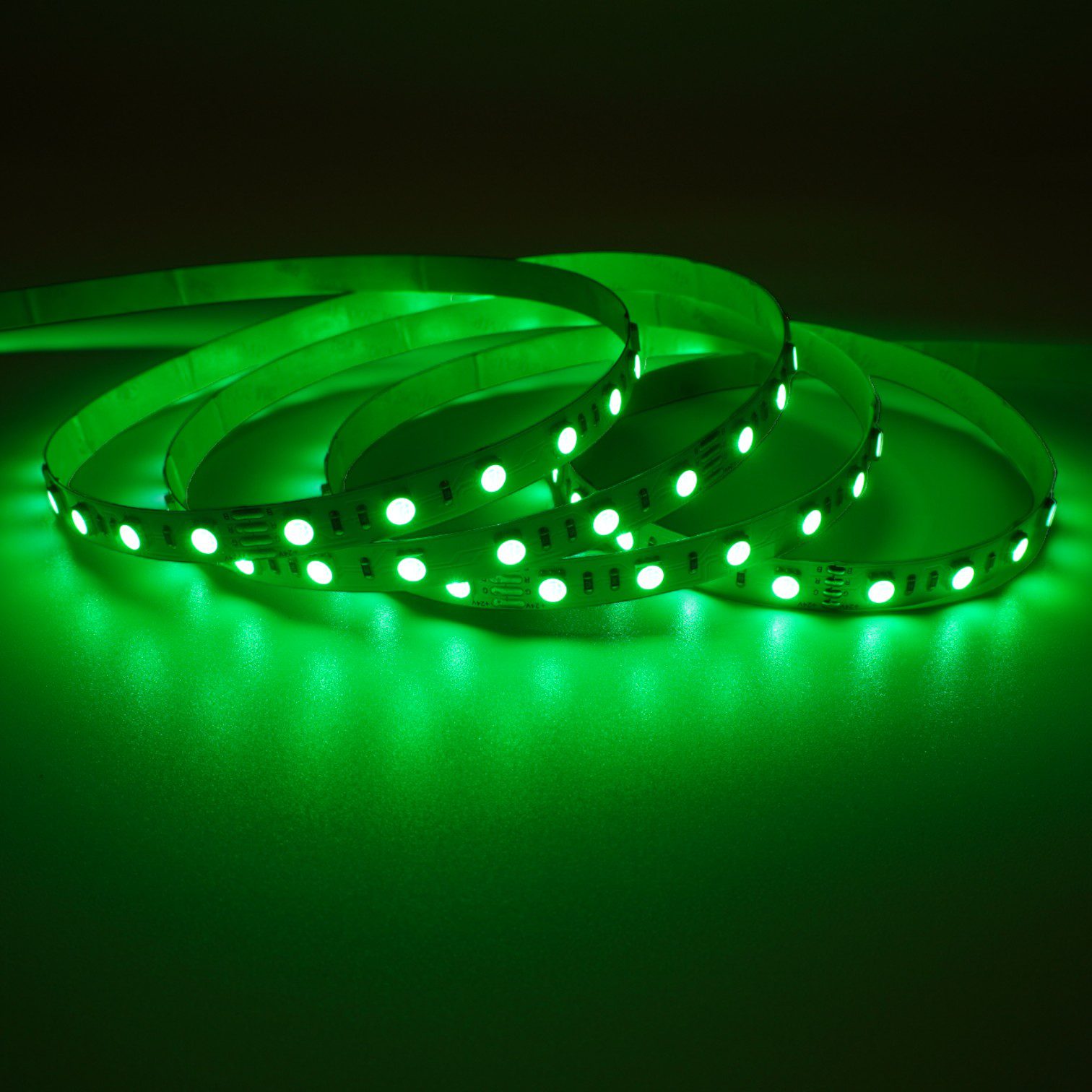

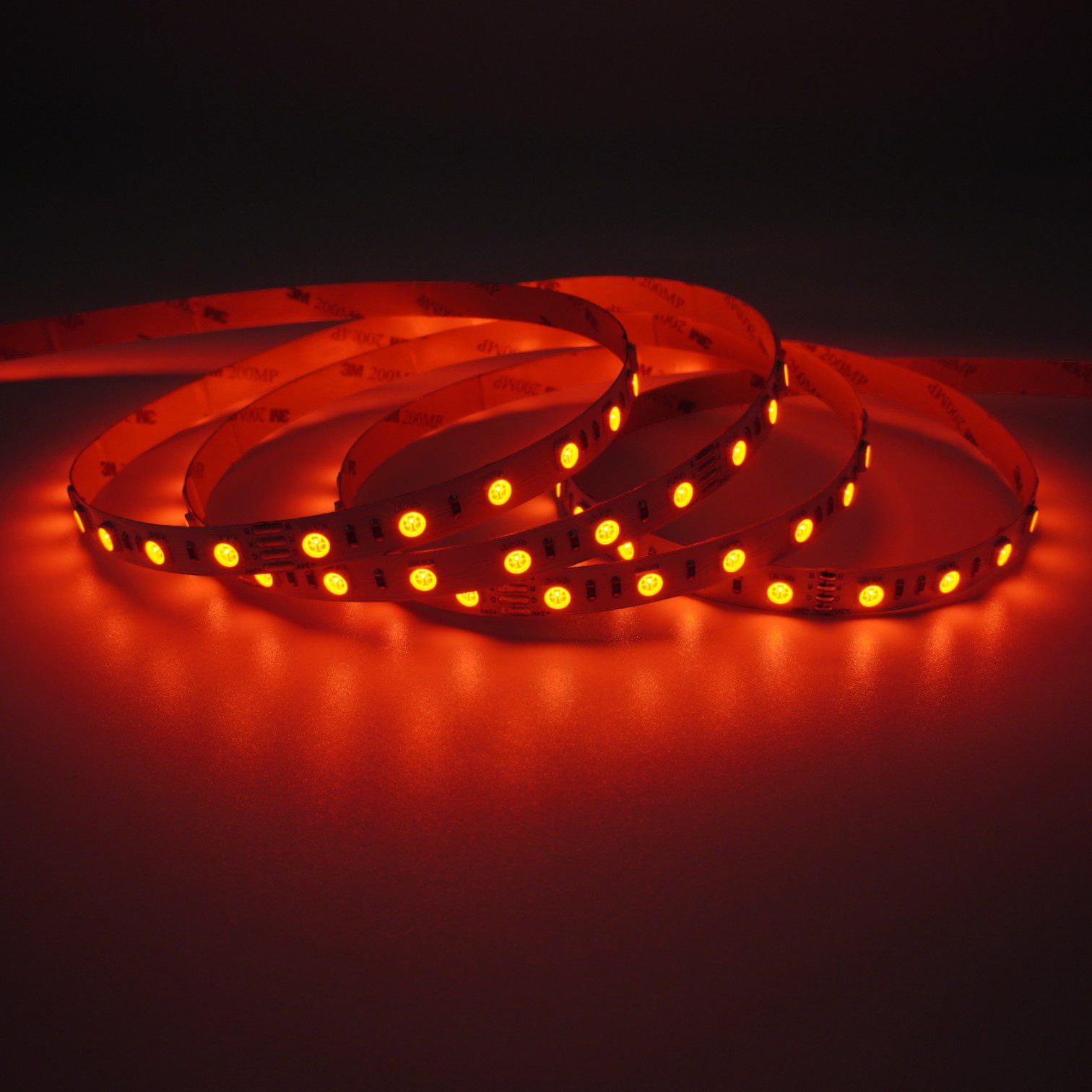

Essential 12W IP20 RGB LED Strip – 5050 Series

Illuminate your space with our 12W IP20 RGB LED Strip, designed to deliver exceptional brightness and efficiency. This LED strip offers brilliant illumination while being energy efficient.

Its flexible design allows for precise customization, with cut points every 100mm, ensuring you can tailor the length to your exact needs. Available in 5m, 10m, and 50m reels, this LED strip is perfect for a variety of applications, from accent lighting to large-scale installations.

Ideal for indoor use, the IP20 rating ensures reliability in dry areas, making it a versatile and cost-effective lighting solution.

We suggest mounting the LED strip in an aluminium profile to offer protection and serve as a heat sink, helping to prevent overheating and extend the product’s lifespan.

Specifications:

• Warranty (Years): 3
• Dimmable: Yes
• Dimming Type: PWM, RF, Bluetooth, 0-10V, Triac, Dali, DMX, WIFI
• Energy Efficiency Class: F
• Max. Run Length (m): 10
• Max. Wattage @ Max. Run Length (W): 120
• Application Environment: Hospitality, Commercial
• Ingress Protection (IP): 20
• UV Resistant: No
• Input Voltage Min. – Max (V): 24-24V
• LEDs Per Metre (LEDs/m): 60
• PCB Type: FPC
• Product Height (mm): 2
• Width (mm): 10
• Constant Voltage: Yes
• Beam Angle (°): 120
• Operating Temperature Min. – Max. (°C): -20℃ to 45℃
• Self-Adhesive: 3M-300LSE
• Brand: StripTec UK
• Cut Points (mm): 100
• CRI: 90
• Family Name: 5050 Series
• Bend Direction: Vertical
