Essential COB Specifications

• Voltage: 24V
• Max. Power: 4.5W/m
• LEDs per metre: 320 LEDs
• Cut Points: Every 50mm
• Beam Angle: 180°
• PCB Weight: 2oz
• Lumens: Up to 450lm/m
• Warranty: 3 Years

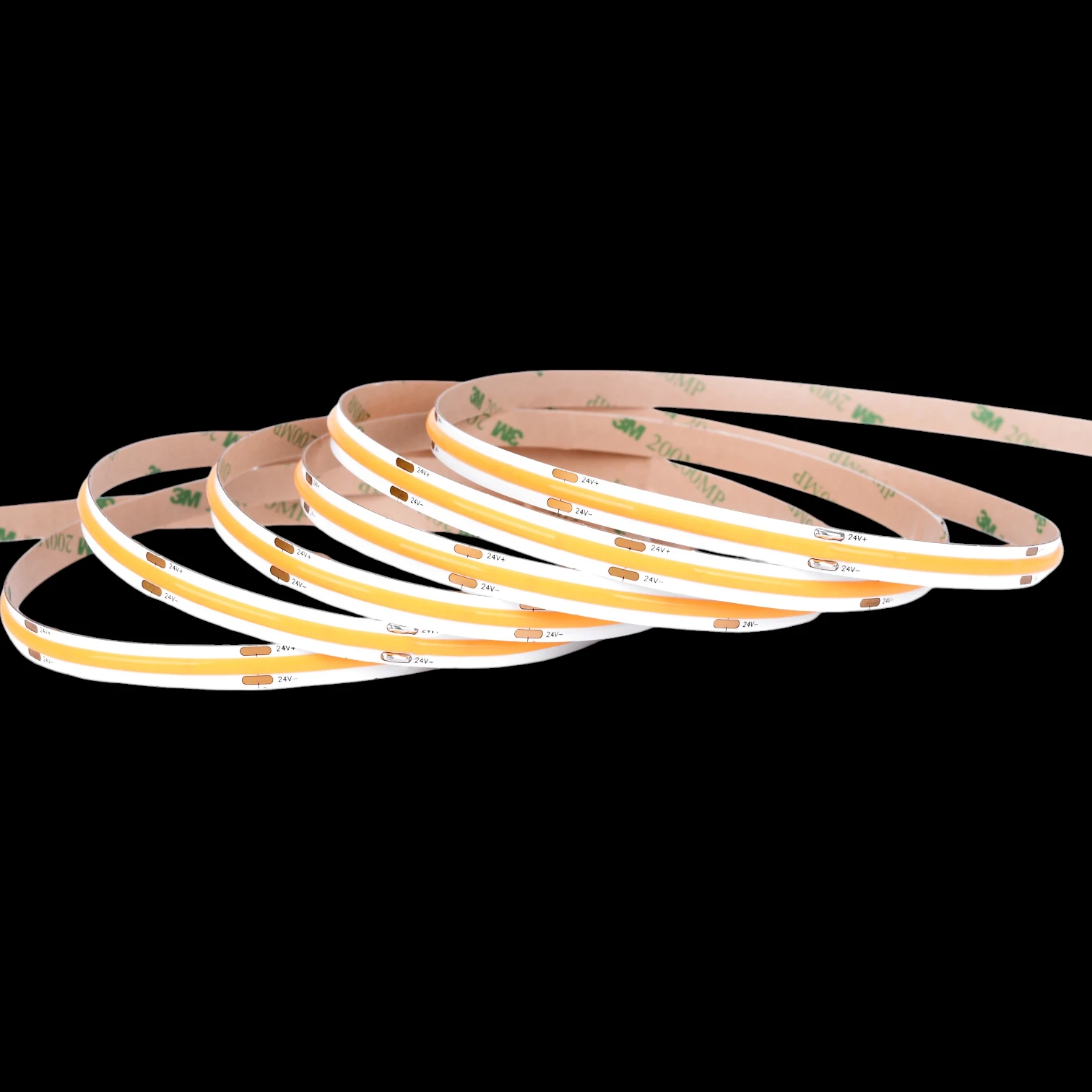

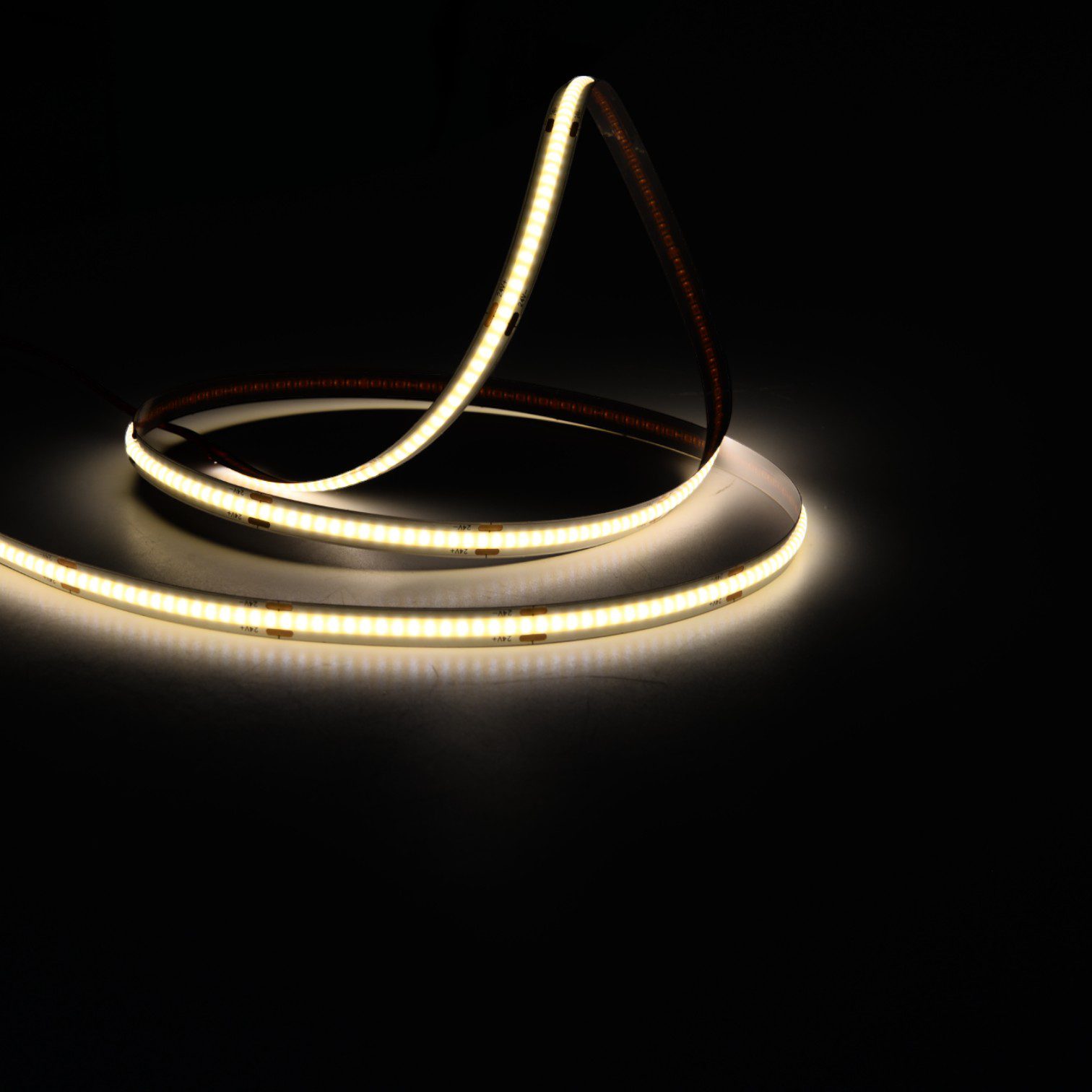

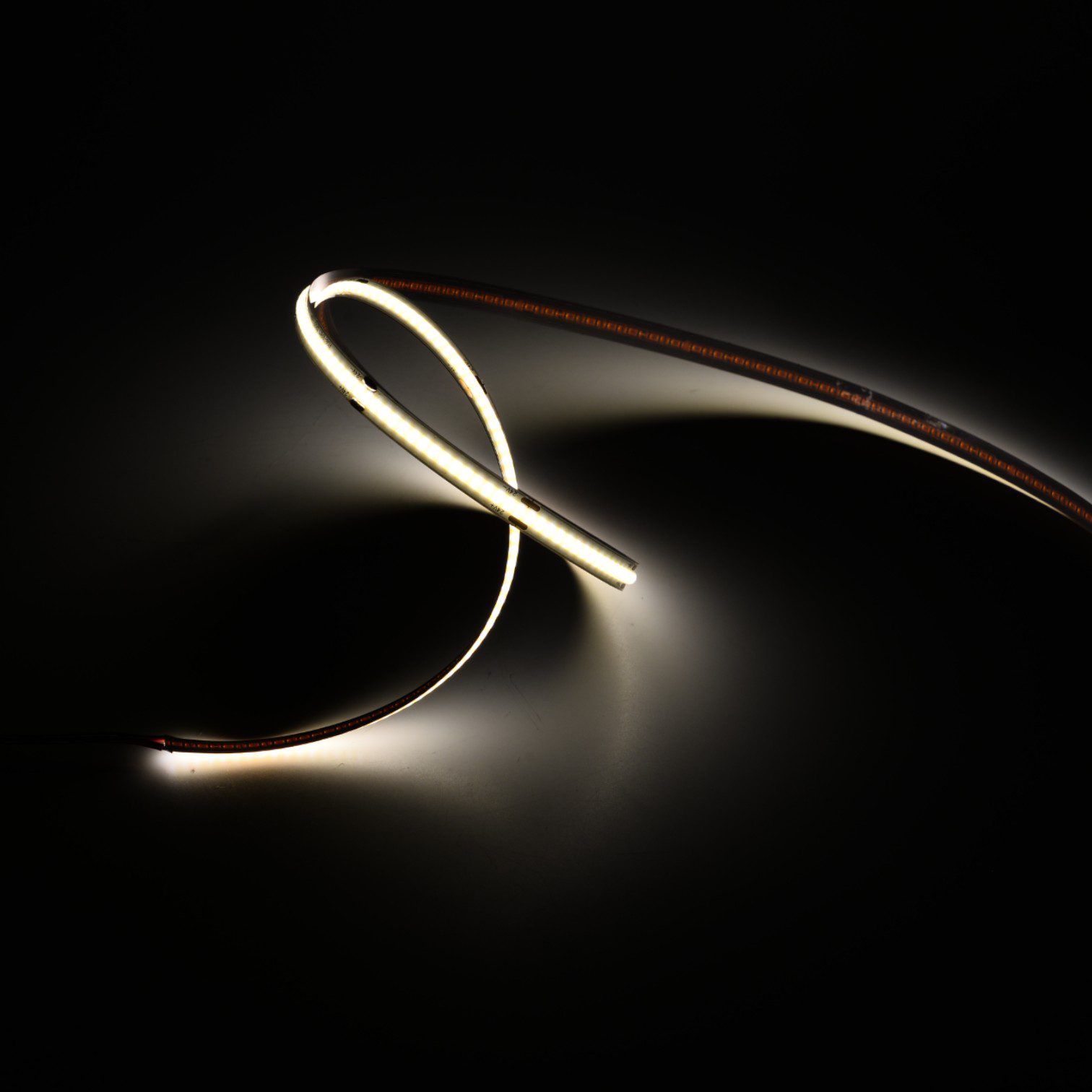

Essential COB 4.5W IP20 LED Strip – Efficient Lighting Solution

Brighten your space with our 4.5W IP20 COB LED Strip, offering excellent brightness and energy efficiency. Available in various colour temperatures including 2700K, 3000K, 4000K, 6000K & boasting 450 lumens per meter, this LED strip provides impressive illumination while remaining highly efficient. Its flexible design features cut points every 50mm, allowing for customization to meet your needs. Available in 1m, 3m, 5m, 10m, and 50m reels, this LED strip is ideal for a wide range of applications, from accent lighting to detailed installations.

Designed for indoor use, the IP20 rating ensures dependable performance in dry environments, making it a versatile and cost-effective lighting option.

We suggest mounting the LED strip in an aluminium profile to offer protection and serve as a heat sink, helping to prevent overheating and extend the product’s lifespan.

Essential COB LED Strip – Specifications

• Warranty (Years): 3
• Dimmable: Yes
• Dimming Type: PWM, RF, Bluetooth, 0-10V, Triac, Dali, DMX, WIFI
• Energy Efficiency Class: F
• Max. Run Length (m): 10
• Max. Wattage @ Max. Run Length (W): 45
• Application Environment: Hospitality, Commercial
• Ingress Protection (IP): 20
• UV Resistant: No
• Input Voltage Min. – Max (V): 24-24V
• LEDs Per Metre (LEDs/m): 320
• PCB Type: FPC
• Product Height (mm): 3
• Width (mm): 8
• Constant Voltage: Yes
• Beam Angle (°): 180
• Operating Temperature Min. – Max. (°C): -20℃ to 45℃
• Self Adhesive: 3M-300LSE
• Brand: StripTec UK
• Cut Points (mm): 50
• CRI: 90
• Lumens Per Watt (Lm/W): 100
• Family Name: Essential COB
• Bend Direction: Vertical
• Lumens Per Metre (Lm/m): 450

CLICK HERE TO DOWNLOAD THE SPEC SHEET
