Product Overview

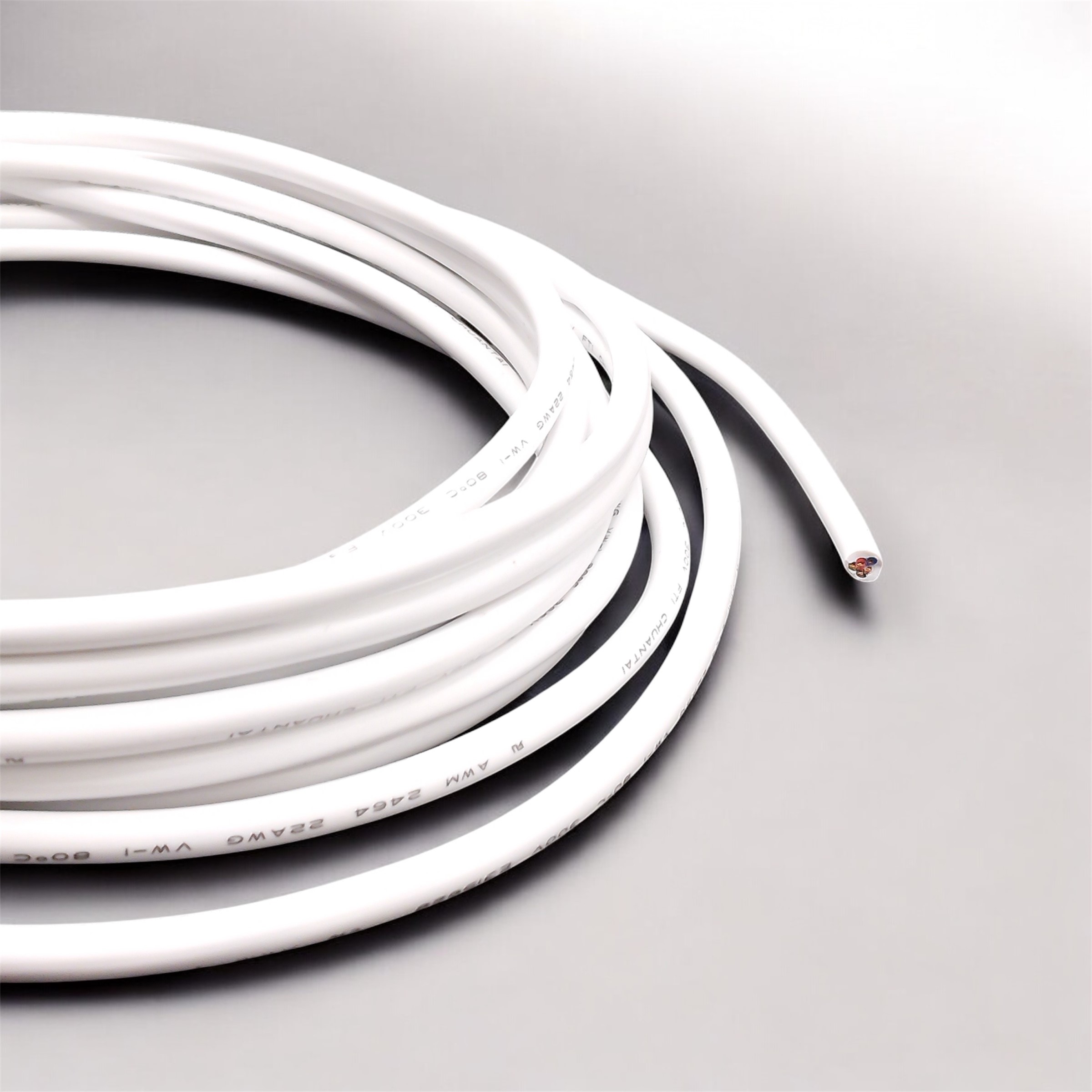

Our 5 Core RGBW Low Voltage Cable is designed to handle up to 300V, making it an excellent choice for a lightweight 22AWG gauge cable. Its unique construction provides a versatile, durable, and lightweight wiring solution.
The reduced weight and compact size make it easier to handle, transport, and install—especially when working with cable bundles, looms, or feeding through tight spaces and ducts. Available in 5-metre, 10-metre, 50-meter and 305-metre lengths.
Product Specification
Cable Specifications
| Specification | Details |
|---|---|
| Warranty (Years) | 3 |
| Voltage Max. Rated (V) | 300V |
| Chemical Resistant | Yes |
| Saltwater Resistant | Yes |
| Solvent Resistant | No |
| UV Resistant | No |
| Input Cross-Section of Conductors for Terminals (mm²) | 0.35 |
| Cable Conductor Material | Copper |
| Cable Weight (AWG) | 22 |
| Product Height (mm) | 5 |
| Width (mm) | 5 |
| Operating Temperature Min. – Max. (°C) | -40℃ to 105℃ |
| Brand | StripTec UK |
| Cable Shape | ROUND |
| Cable Sheath Material | PVC |
Technical Documents
