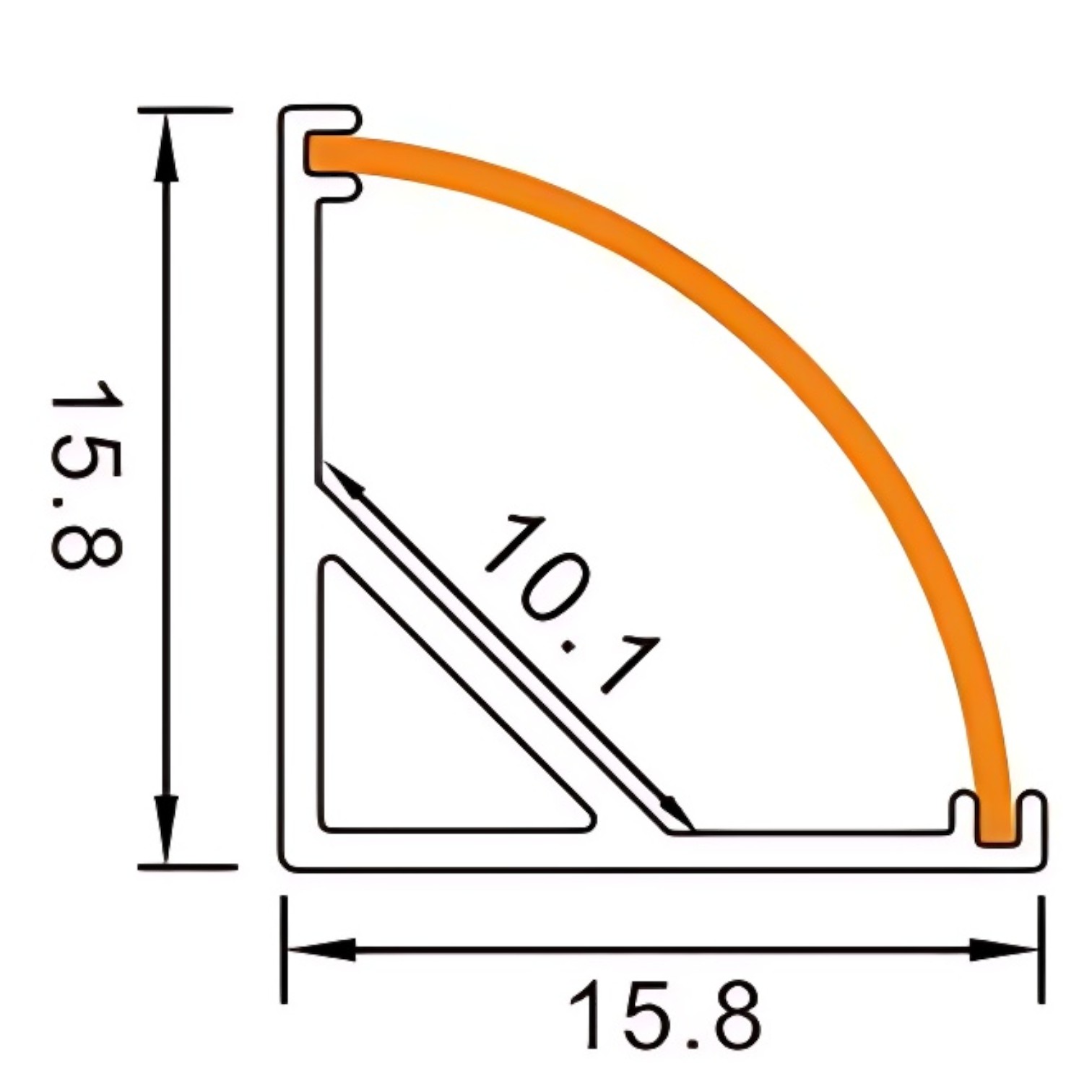

Specifications:

• Dimensions: 16x16mm
• Max LED Strip Width: 10mm
• Material: Anodised aluminium

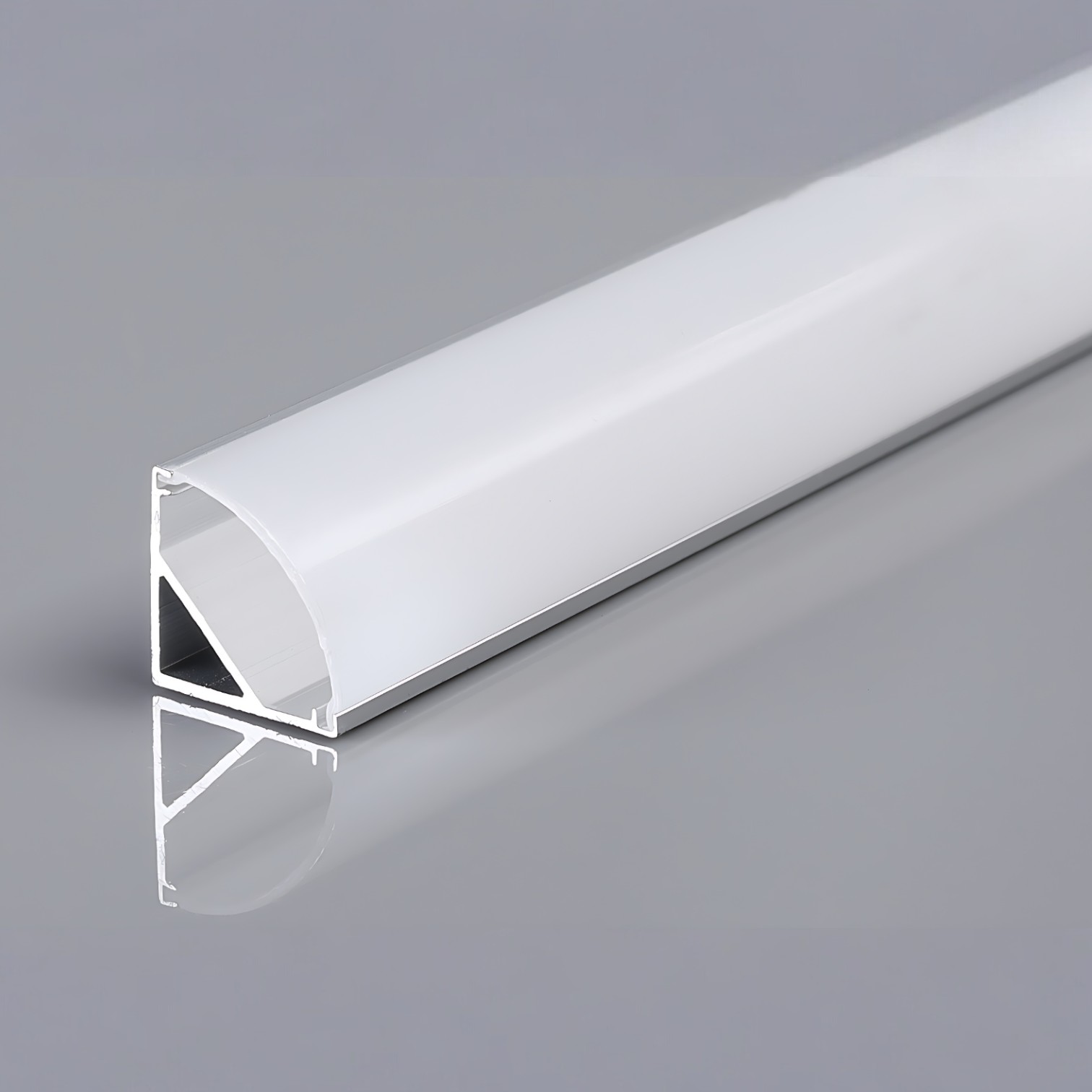

Surface Mounted, Corner, Aluminium Profile for IP20 & IP65 LED Strips

Optimize your LED installations with our Low-Profile, surface mount corner Aluminium Profile, designed to fit IP20 and IP65 LED strips up to 10mm wide & 5mm height. This sleek aluminium profile acts as a heat sink, enhancing heat dissipation and extending the lifespan of your LEDs.

Available in Silver or Black finish, in 2-meter lengths, it provides a clean, professional finish to your lighting projects. Choose from opal, clear, or black diffusers to achieve the perfect light diffusion and aesthetic for your space. Ideal for both residential and commercial applications, this aluminium profile ensures your LED strips perform at their best while adding a touch of elegance to your design.

Custom Lengths Available

StripTec UK stands out as one of the few UK suppliers offering tailored profile lengths to simplify installation. Contact us today for a personalized quotation.

Perfect for Indoor Applications in Both Dry and Damp Areas

Crafted from fully anodized aluminum, this profile is corrosion-resistant, making it suitable for dry spaces and damp environments like bathrooms when paired with an appropriately IP-rated LED strip light.

Product Specifications

• Installation Type: Surface Mounted

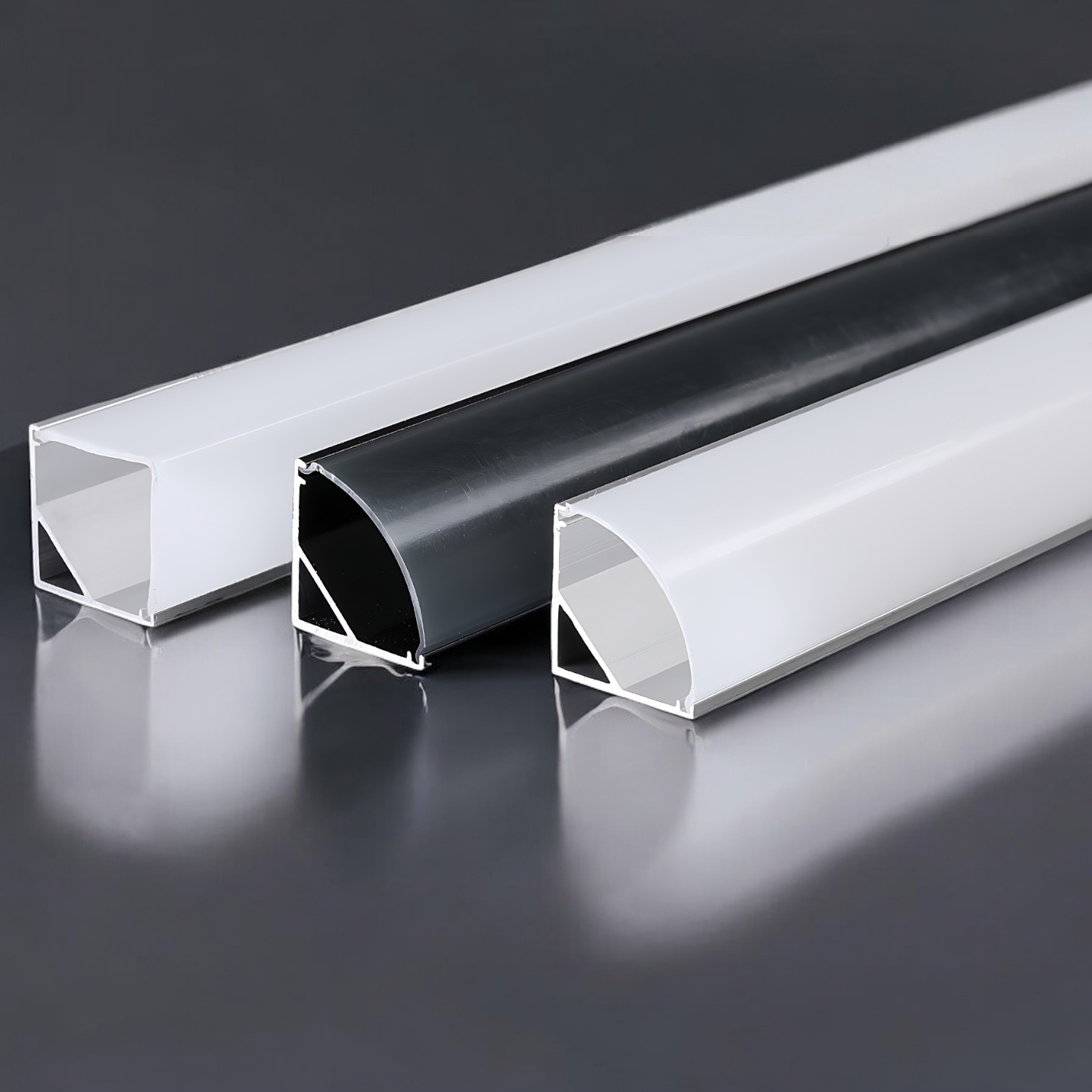

• Available Colours: Black, Silver
• Available Lengths: 2 Metres
• Material: Anodised Aluminium, PC Diffuser
• IP Rating: IP20 Non Waterproof
• External Width: 16mm
• External Height: 16mm
• Max. LED Strip Width: 10mm
• Body Material: Anodised Aluminium, PC Diffuser
• Ingress Protection (IP): 20
• Mounting Type: Surface Mounted
• Diffuser Colour: Opal, Transparent, Black
• Max. Strip Width (mm): 10
• Brand: StripTec
