Tile In Aluminium Profile Specifications

• Dimensions: 35x13mm
• Max LED Strip Width: 12mm
• Material: Anodised aluminium

Product Overview

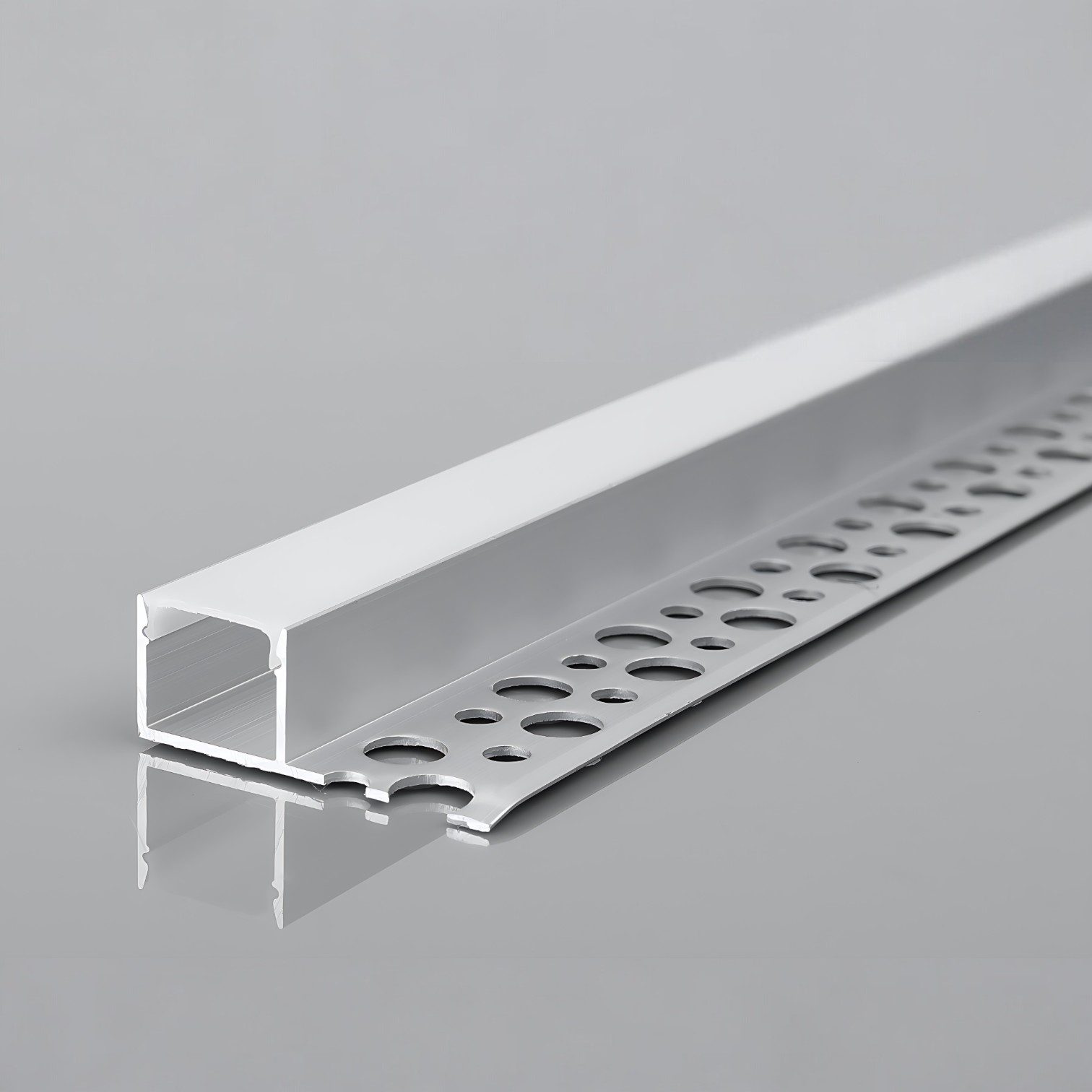

Optimize your LED installations with our Low-Profile, Tile In Aluminium Profile, designed to fit IP20 and IP65 LED strips up to 12mm wide & 5mm height. This sleek aluminium profile acts as a heat sink, enhancing heat dissipation and extending the lifespan of your LEDs. Available in a Silver finish, in 2-meter lengths, it provides a clean, professional finish to your lighting projects. Supplied complete with an opal diffuser to achieve the perfect light diffusion and aesthetic for your space. Ideal for both residential and commercial applications, this aluminium profile ensures your LED strips perform at their best while adding a touch of elegance to your design.

Custom Lengths Available

StripTec UK stands out as one of the few UK suppliers offering tailored profile lengths to simplify installation. Contact us today for a personalized quotation.

Perfect for Indoor Applications

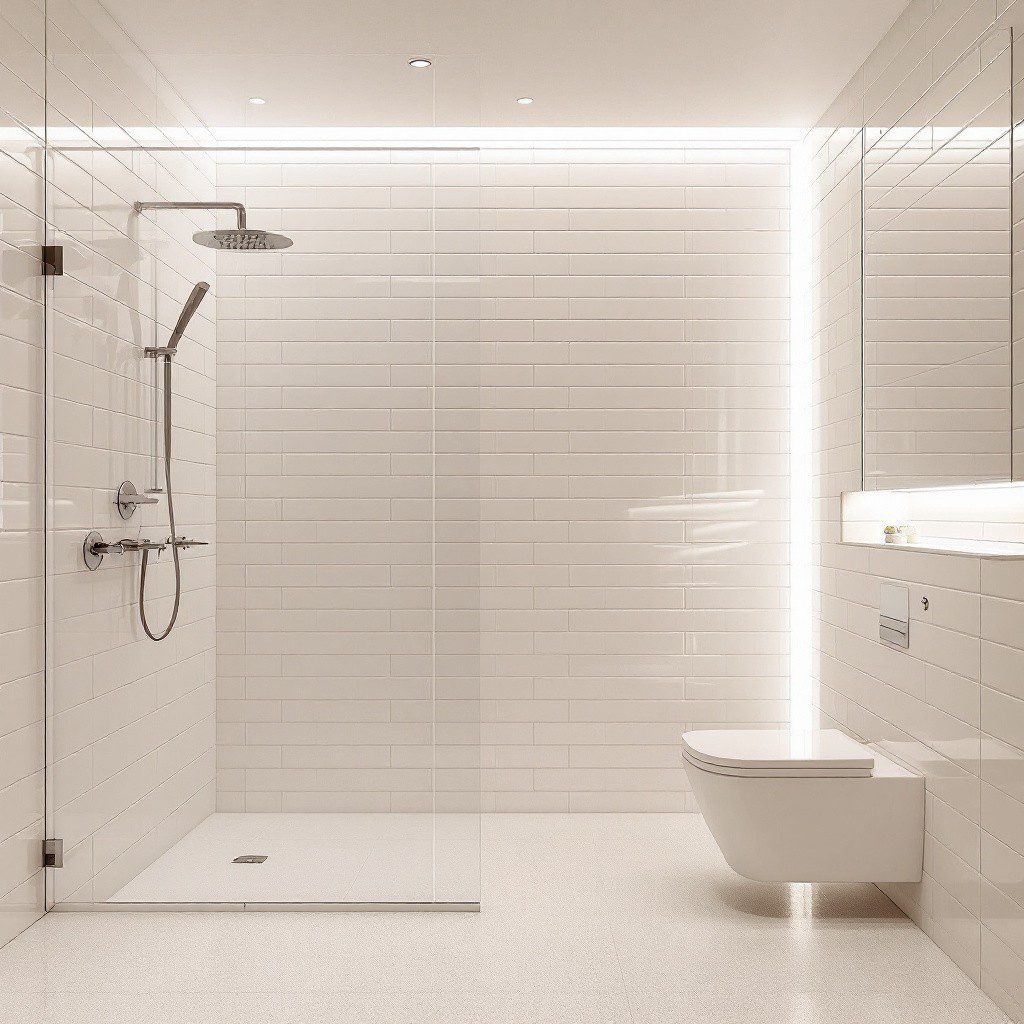

This profile is ideal for indoor applications in both dry and damp areas. Crafted from fully anodized aluminium, it is corrosion-resistant, making it suitable for dry spaces and damp environments like bathrooms when paired with an appropriately IP-rated LED strip light.

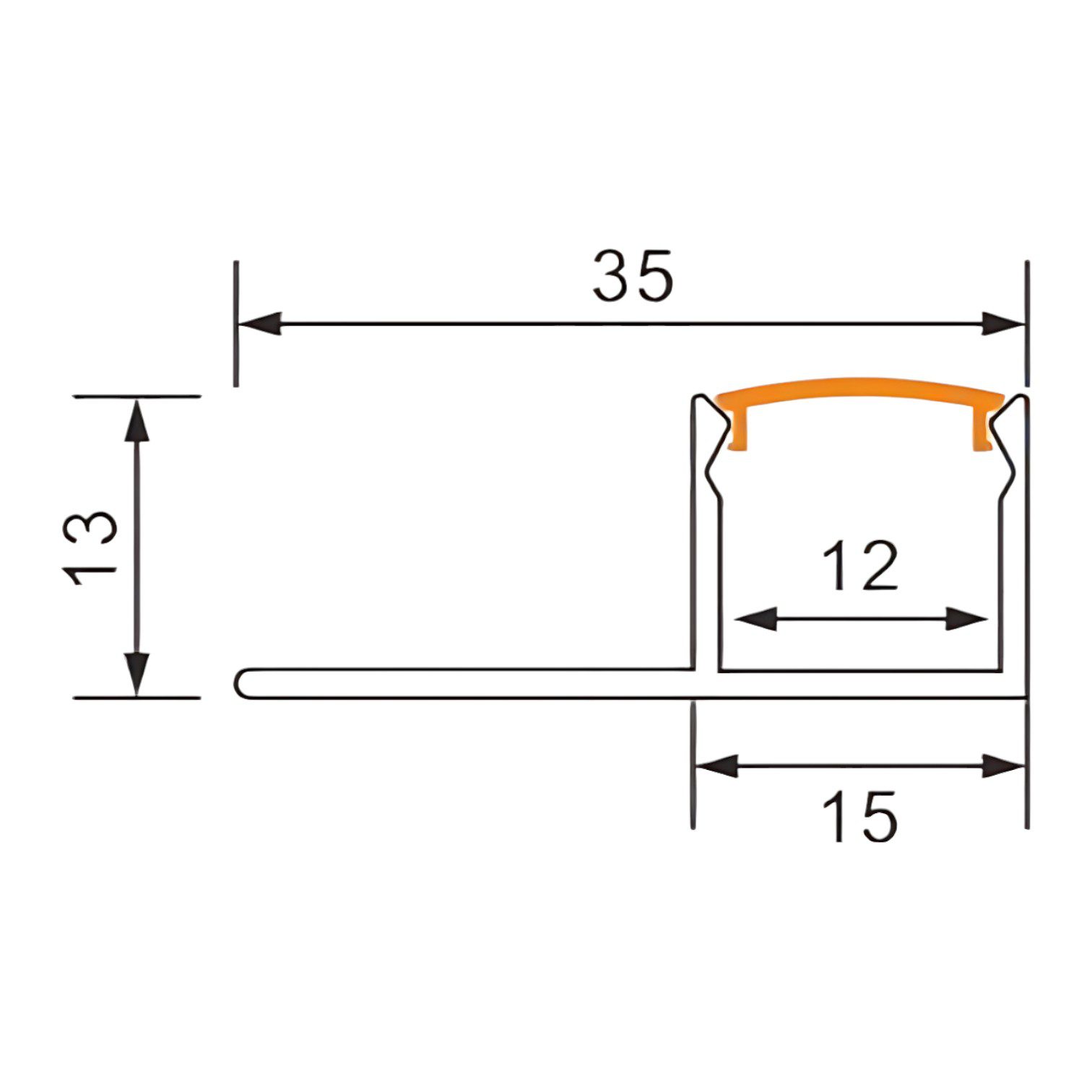

Tile In Aluminium Profile Installation Specifications

• Installation Type: Tile In
• Available Colours: Silver
• Available Lengths: 2 Metres
• Material: Anodised Aluminium, PC Diffuser
• IP Rating: IP20 Non Waterproof
• External Width: 35mm
• External Height: 13mm
• Max. LED Strip Width: 12mm
• Internal Height: 13mm
• Body Material: Anodised Aluminium, PC Diffuser
• Ingress Protection (IP): 20
• Diffuser Colour: Opal
• Max. Strip Width (mm): 12
• Brand: StripTec UK
