Varilight | TRIAC | 230V | Push On/Off Rotary | LED Dimmer | 15-180W | Max 0.78A

MKP180

£14.71

Key Features

1 or 2 Way Switching
Push On/Off & Dimming Function
Max. Current: 0.78A
Max. Load: 180W
Compatible with Varilight Dimmer Faceplates

Product Overview

Product Specification

Technical Documents

Product Overview

Product Information

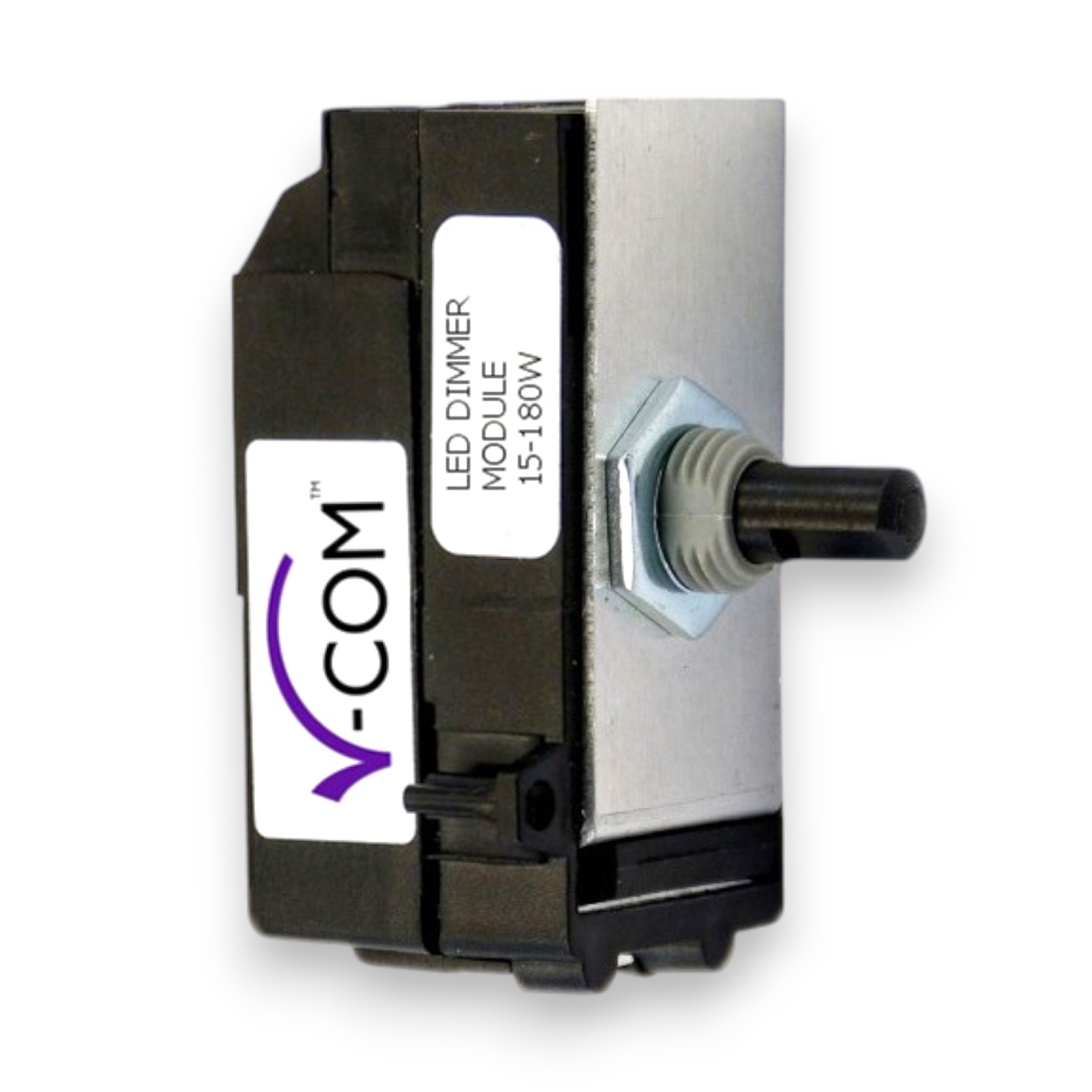

Introducing the Varilight 230V 2-Way Push On/Off Rotary LED Dimmer. This product uses V-Com intelligent TRIAC leading edge dimming technology and features built-in soft start and overload protection.

It is capable of both push on/off function and dimming function. We recommend using it with our Mains Dimmable TRIAC LED Drivers.

Manufactured in the UK from high-quality materials and components, this dimmer comes with a 10 year warranty as standard.

Specifications

Specification	Value
Input Voltage	230V AC
Frequency	50Hz
Output Current	Max. 0.78A
Max. Load	180W
Push On/Off Function	Yes
Dimming Function	Yes
Dimensions (mm)	53L x 28W x 42H
Warranty	10 Years

Product Specification

Specification	Value
Warranty (Years)	10
Rated Life (Hours)	87,600
Application Environment	Domestic, Office
Body Material	Plastic
Ingress Protection (IP)	20
Interior or Exterior Use	Interior
Mounting Type	10mm Bushing & Nut
Input Current Max. (A)	0.78
Input Current Type (A)	AC
Input Terminal / Connector Type	Screwed Terminal
Input Voltage Min. – Max (V)	230-230V
Body Colour	Black
Product Weight (g)	48
Constant Voltage / Constant Current	CV
Load Min. (W)	15
Output Current Type	AC
Output Terminal / Connector Type	Screwed Terminal
Fixings Included	Yes
Over Current Protection	No
Over Temperature Protection	Yes
Over Voltage Protection	No
Operating Temperature Min. – Max. (°C)	-5℃ to 40℃
Dimensions LxWxH (mm)	53 x 28 x 42
Brand	Varilight
Number of Zones	1
Max. Output Current Per Channel (A)	0.78
Number of Control Channels	1
Family Name	Varilight Triac Control
Dimming Range Min. – Max (%)	10-100%
